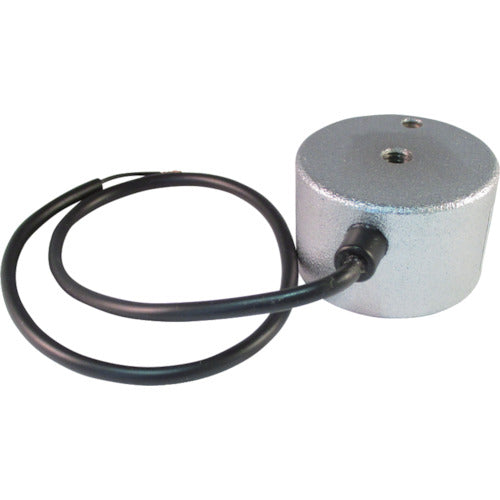

KANETEC Thin Electromagnetic Holder KE-6E 1 unit

Catalogue number: KE-6E Features: ●Since it is electromagnetic, it is possible to remotely control the ON/OFF of the magnetic force. ●Uses a cable that is highly durable against bending and vibration. ●The magnetic force can be turned ON/OFF, and its strength and weakness can be controlled remotely by operating a rectifier (sold separately). ●Thinner than the standard model, it is effective for installation in narrow spaces. ●Can be used in automated manufacturing lines. Applications: ●Wide range of applications, from various automated equipment to the handles of industrial robots. ●Can be used in a wide range of applications, from material feeding for automatic presses and preventing deflection of shearing materials, to the handles of various automated equipment and industrial robots. Specifications: ● Adhesive force (N): 880 ● Height (mm): 30 ● Diameter (mm): 60 ● Voltage (V): DC90 ● Current (A): 0.07 ● Power cord length (m): 0.3 ● Compatible rectifiers: KR-N101A/KR-N103A/RH-M302A/RH-M305A/RH-M210B Note: ● A model with the cord pulled out from the top (KE-EU) can also be manufactured.
