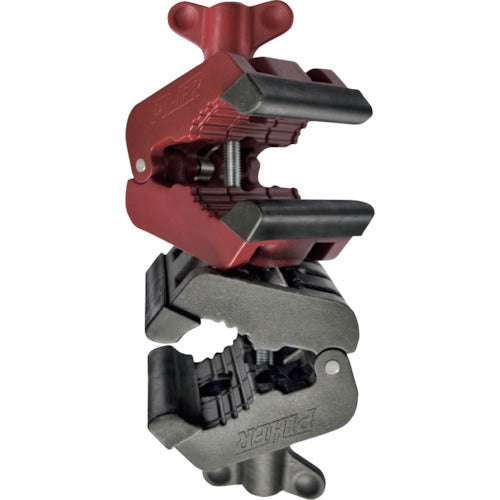

KDS Double Pivot Multi Clamp DMCP-30 1 piece

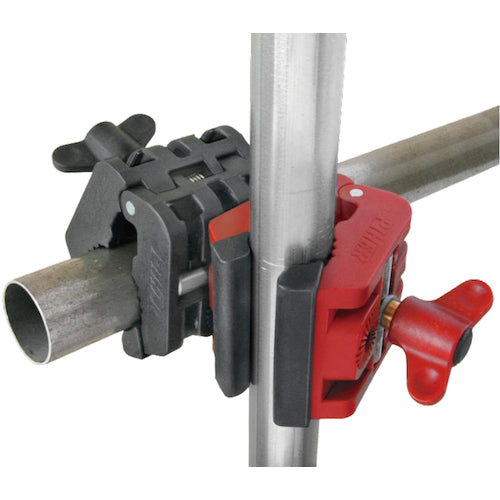

Catalog number: DMCP-30 Features: ●Double type with two multi-clamps stacked on top of each other. Applications: ●For temporarily fastening pipes and single pipes. Specifications: ●Total length (mm): 160 ●Maximum opening (mm): Red 50, Black 30 ●Width (mm): 55 ●Total height (mm): 65 ●Pocket depth (mm): Top: 48.6, Bottom: 30 ●Clamping range (mm): Top center: 18-48.6, Top tip: 50, Bottom center: 18-30, Bottom tip: 30 ●Type: Movable ●Clamping width (mm): Red (cylindrical) Φ18-48.6mm, (plate) ~50mm Black (cylindrical) Φ18-30mm, (plate) ~30mm ●Clamping force: 150kg Material/Finish: ●Body: Nylon, glass fiber ●Shaft: Steel Note: ●When fixing single pipes together, please use a "fixed double multi-clamp".
