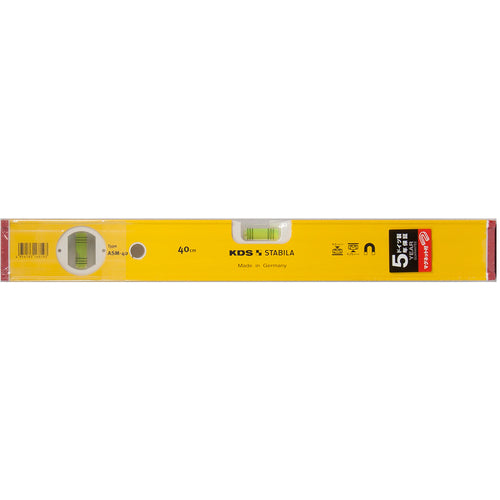

Catalog number: ASM-40 Features: * Powerful magnet protected with resin coating is scratch-resistant and easy to remove foreign matter. * Reinforced body with ribs that is 1.5 times more rigid and resistant to twisting and bending. * Rubber end caps with excellent impact resistance. * Vial is completely and precisely fixed inside the main body with a level block and epoxy resin. * Thick acrylic vial that is resistant to temperature changes and impacts. * Body is finished with scratch-resistant electrocoating. * Comes with a 5-year warranty against vibration of the vial. Uses: ●For horizontal and vertical measurements Specifications: ●Color: Yellow ●Length (mm): 400 ●Height (mm): 50 ●Thickness (mm): 26 ●Magnets: 2 places ●Body color: Yellow ●Vial color: Yellow ●Accuracy: Accuracy: ±0.5mm/m = ±0.029° (normal measurement) ●Vial type: 3-ring type ●Measuring surface groove: None ●Side protector: Yes ●Luminous sheet: None ●Surface treatment: Electrochemical coating ●Accuracy: ±0.5mm/m = ±0.029° (normal measurement) ●Accuracy: ±0.75mm/m = ±0.043° (overhead measurement) Material/Finish: ●Body: Aluminum ●Vial: Acrylic resin Note: ●Vials with discoloration or impact marks are not covered by the warranty. ●You must present the warranty card to receive the warranty.
