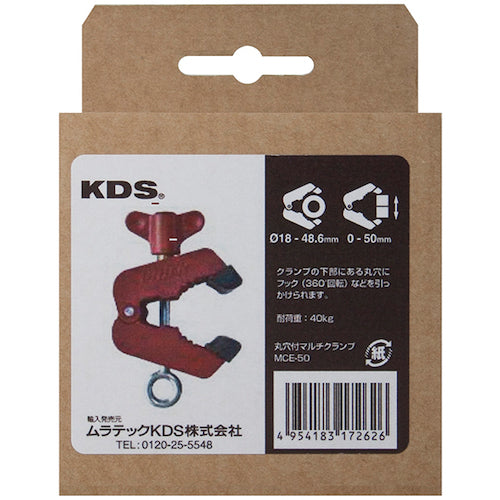

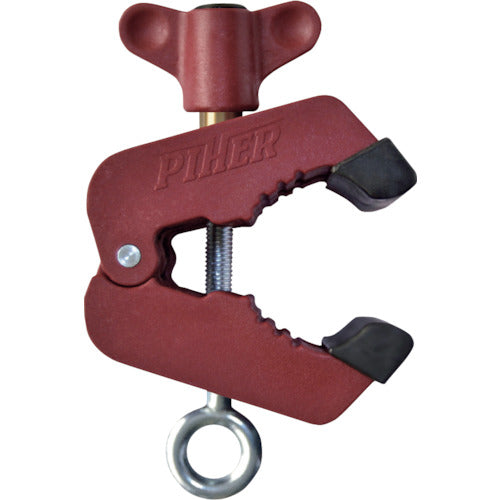

KDS Multi-Clamp with Round Hole MCE-50 1 pc

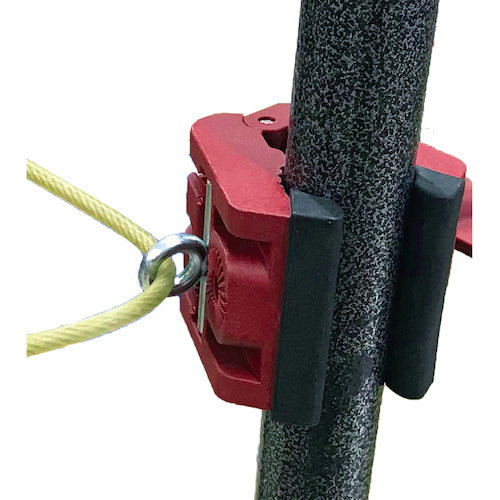

Catalogue number: MCE-50 Features: ● Comes with a round hole that is convenient for stretching temporary wires/ropes/iron wires. Applications: ● For stretching temporary wires/ropes/iron wires. Specifications: ● Total length (mm): 90 ● Maximum opening (mm): 50 ● Width (mm): 55 ● Total height (mm): 65 ● Pocket depth (mm): 48.6 ● Clamping range (mm): Center: 18-48.6, tip 50 ● Clamping width (mm): (Cylindrical) Φ18-48.6mm, (Plate) ~50mm ● Product name: Multi-clamp with round hole ● Clamping force: 150kg ● Metal fittings load capacity: 40kg Materials/Finish: ● Body: Nylon, glass fiber ● Shaft: Steel
