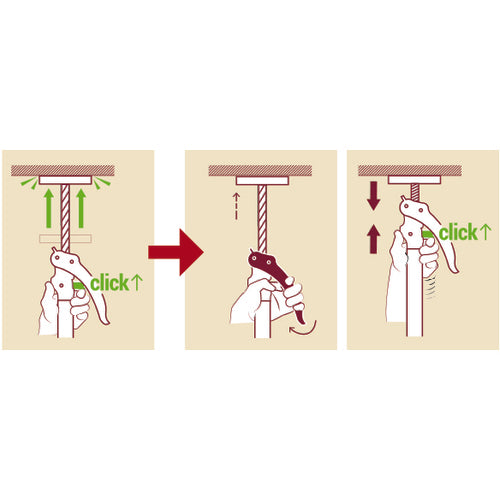

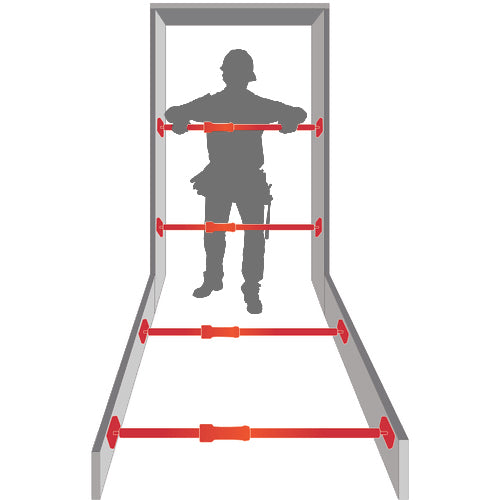

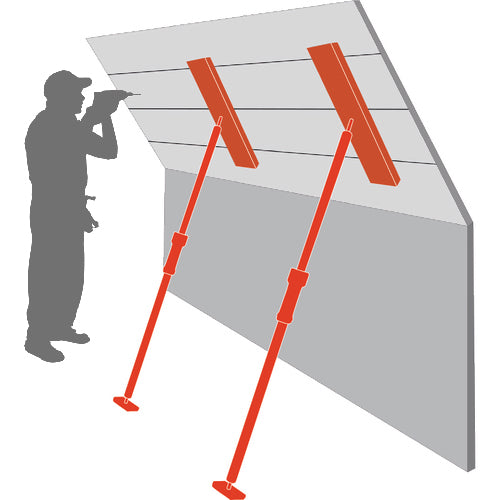

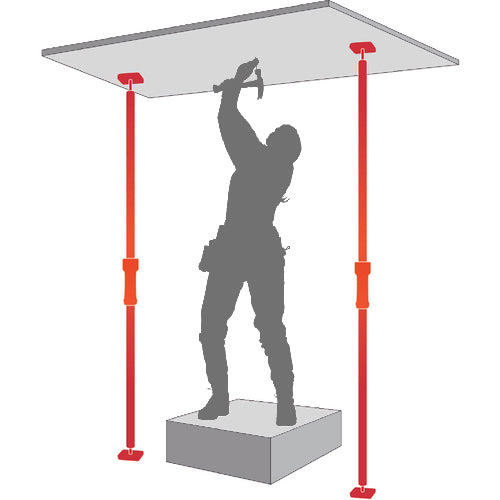

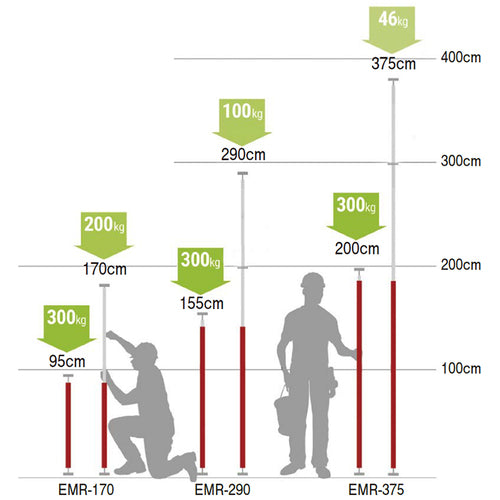

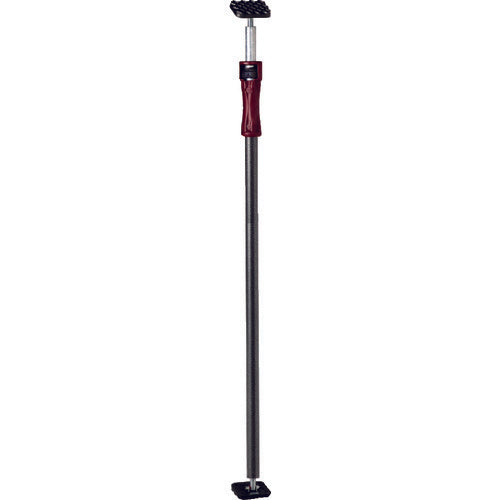

Catalogue number: EMR-170 Features: ● Maximum load capacity: 300 kg. (CE certified) ● Non-slip pad with wide adjustment angle. ● Secure and easy to fix and release. ● Durable nylon handle that is easy to grip. ● Equipped with a triangular screw that transmits pressure firmly. ● Equipped with a spring mechanism that allows quick locking on the ground side. ● Rigid pipe with a thickness of 1 mm. Uses: ● For support, expansion work, and temporary support for ceiling installation work. ● For support, expansion work, and temporary support for plasterboard installation work. Specifications: ● Product name: Telescopic multi-rod 170 ● Type: Telescopic ● Dimensions (mm): 85 x 65 x 950 ● Height (mm): 950 ● Width (mm): 85 ● Thickness (mm): 65 ● Outer diameter (mm): 30 ● Depth (mm): 65 ● Diameter (mm): 30 ● Length (m): 0.95 ● Usable length (mm): 950-1700 ● Stroke (mm): 750 ● Load capacity (t): Maximum 0.3 ● Vertical static load (kg): 300-200 ● Suitable size (mm): 950-1700 ● Applicable size (mm): 950-1700 ● Telescopic length: 95 cm (min) - 170 cm (max) ● Load capacity: Minimum 300 kg when telescopic, maximum 200 kg when telescopic Material/Finish: ● Body/Bar: Steel ● Handle: Nylon/Glass fiber ● Pad: Ethylene vinyl acetate resin Note: The load-bearing value is based on the assumption that both pads of the product are at 90° (standing vertically) to the object.
