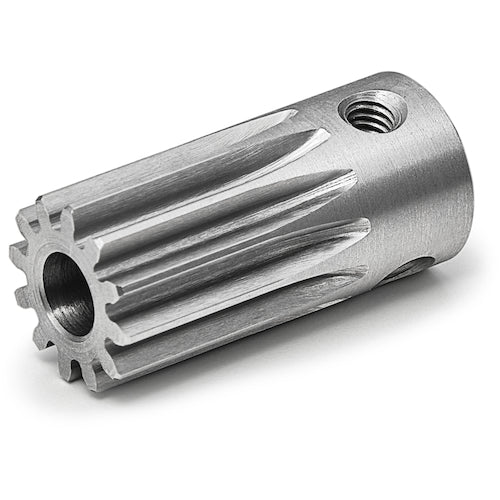

KG Stainless steel spur gear S1SU 15K*0806 Shape K2 Module 1 Number of teeth 15 Tooth width 8mm Hole diameter Φ6mm S1SU 15K*0806 1 pc

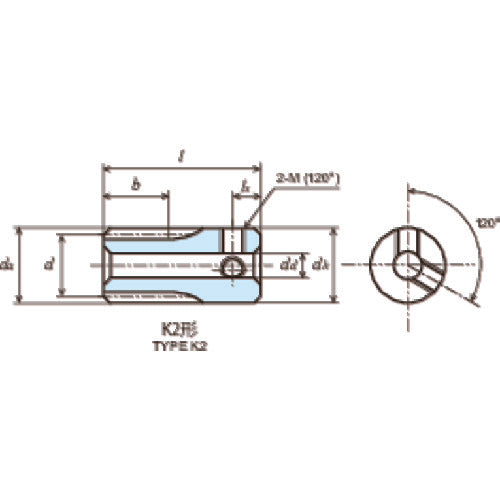

Catalog number: S1SU 15K*0806 Features: ● Small precision gears. Applications: ● Used for general industrial machinery, medical equipment, and food machinery. Specifications: ● Module: 1 ● Number of teeth: 15 ● Shape: K2 ● Reference circle diameter (mm): φ15 ● Tooth width (mm): 8 ● Hole diameter (mm): φ6 ● Tooth tip circle diameter: φ17 ● Total length (mm): 25 ● Hub outer diameter (mm): φ17 ● Tooth tip circle diameter (mm): φ17 ● Mounting screw M: 2-M4 ● Mounting screw ls: 4 ● Hub length (mm): 17 ● Gear precision: JIS B 1702-1 (ISO) grade 9 ● Tooth shape: Straight teeth ● Pressure angle: 20° Material/Finish: ● SUS304 (stainless steel bar)
