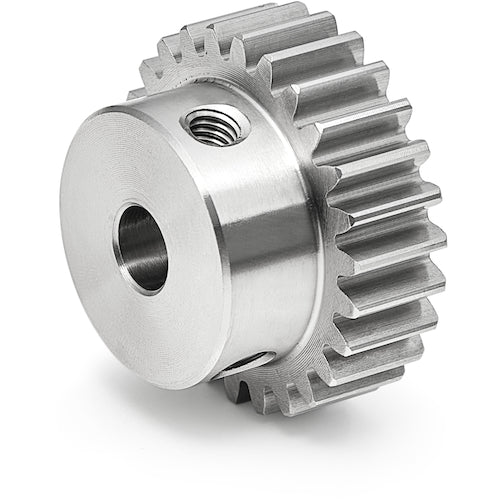

KG Stainless Steel Spur Gear S1SU 17B*0806 Shape B1 Module 1 Number of Teeth 17 Tooth Width 8mm Hole Diameter Φ6mm S1SU 17B*0806 1 pc

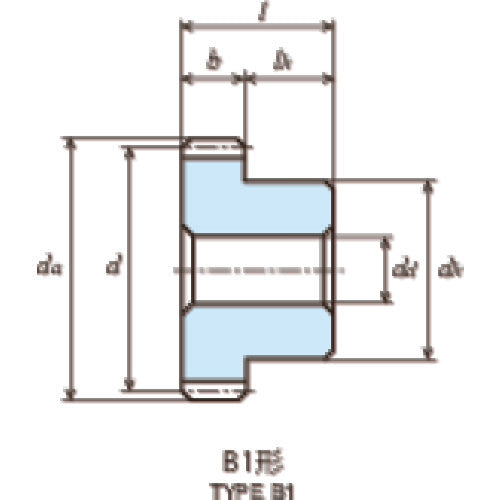

Catalog number: S1SU 17B*0806 Features: ● Small precision gears. Applications: ● Used for general industrial machinery, medical equipment, and food machinery. Specifications: ● Module: 1 ● Number of teeth: 17 ● Shape: B1 ● Reference circle diameter (mm): φ17 ● Tooth width (mm): 8 ● Hole diameter (mm): φ6 ● Tooth tip circle diameter: φ19 ● Total length (mm): 16 ● Hub outer diameter (mm): φ14 ● Tooth tip circle diameter (mm): φ19 ● Mounting screw M: 2-M4 ● Mounting screw ls: 4 ● Hub length (mm): 8 ● Gear precision: JIS B 1702-1 (ISO) grade 9 ● Tooth shape: Straight teeth ● Pressure angle: 20° Material/Finish: ● SUS304 (stainless steel bar)
