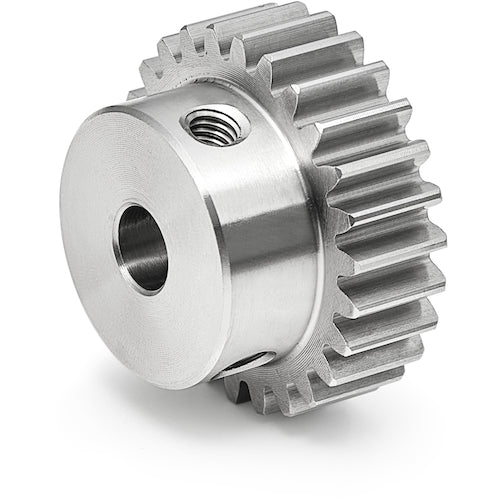

KG Stainless steel spur gear S1SU 28B*1006 Shape B1 Module 1 Number of teeth 28 Tooth width 10mm Hole diameter Φ6mm S1SU 28B*1006 1 piece

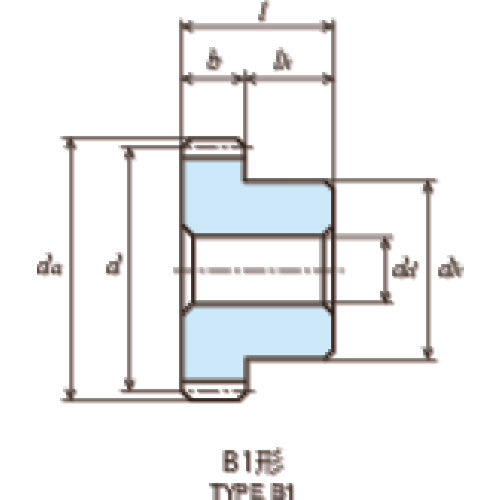

Catalog number: S1SU 28B*1006 Features: ● Small precision gears. Applications: ● Used for general industrial machinery, medical equipment, and food machinery. Specifications: ● Module: 1 ● Number of teeth: 28 ● Shape: B1 ● Reference circle diameter (mm): φ28 ● Tooth width (mm): 10 ● Hole diameter (mm): φ6 ● Tooth tip circle diameter: φ30 ● Total length (mm): 20 ● Hub outer diameter (mm): φ20 ● Tooth tip circle diameter (mm): φ30 ● Mounting screw M: 2-M4 ● Mounting screw ls: 4 ● Hub length (mm): 10 ● Gear precision: JIS B 1702-1 (ISO) Grade 9 ● Tooth shape: Straight teeth ● Pressure angle: 20° Material/Finish: ● SUS304 (stainless steel bar)
