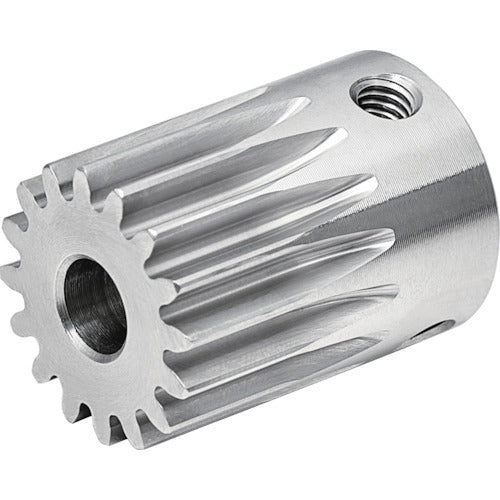

KG Stainless steel spur gear S80SU 15K*0704 Shape K1 Module 0.8 Number of teeth 15 S80SU 15K*0704 1 piece

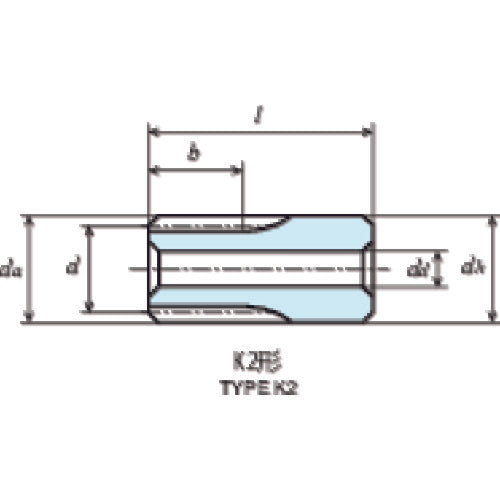

Catalog number: S80SU 15K*0704 Features: ● Small precision gears. Applications: ● Used for general industrial machinery, medical equipment, and food machinery. Specifications: ● Module: 0.8 ● Number of teeth: 15 ● Shape: K2 ● Reference circle diameter (mm): φ12 ● Tooth width (mm): 7 ● Hole diameter (mm): φ4 ● Tooth tip circle diameter: φ13.6 ● Total length (mm): 20 ● Hub outer diameter (mm): φ13.6 ● Tooth tip circle diameter (mm): φ13.6 ● Mounting screw M: 2-M3 ● Mounting screw ls: 3 ● Hub length (mm): 13 ● Gear precision: JIS B 1702-1 (ISO) grade 9 ● Tooth shape: Straight teeth ● Pressure angle: 20° Material/Finish: ● SUS304 (stainless steel bar)
