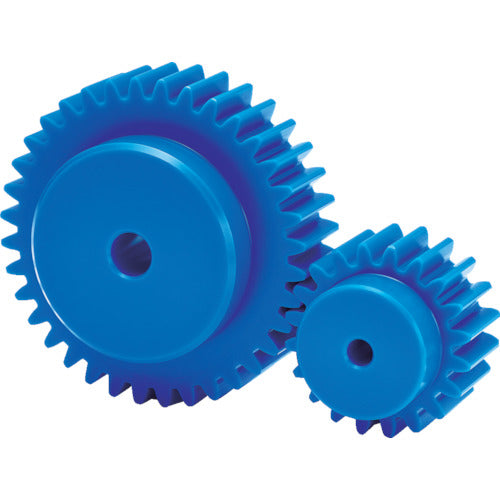

KG Food Contact Blue POM Gear Series Spur Gear Number of Teeth 25 Shape B1 S80BP25B-0503 1 piece

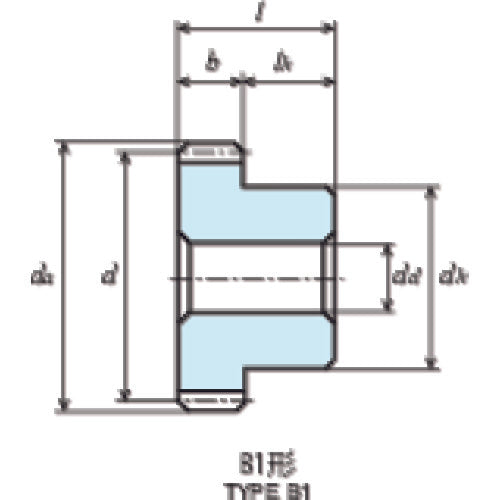

Catalog number: S80BP25B-0503 Features: ●Food contact, blue POM Gear series, blue polyacetal resin. ●Blue POM, which is not a food material color, is ideal for food and packaging equipment as a foreign matter contamination prevention measure. Applications: ●Food, packaging equipment, medical equipment, etc. Specifications: ●Module: 0.8 ●Number of teeth: 25 ●Shape: B1 ●Reference circle diameter (mm): φ20 ●Tooth width (mm): 5 ●Hole diameter (mm): φ3 ●Tooth tip circle diameter: φ21.6 ●Total length (mm): 12 ●Hub outer diameter (mm): φ16 ●Tooth tip circle diameter (mm): φ21.6 ●Hub length (mm): 7 ●Food contact applications and regulations for the US and EU markets ●JIS B1702-1 (ISO) Class 9-10 ●Pressure angle: 20° (straight teeth) Material/Finish: ●Blue polyacetal resin Caution: ●Please note that this product cannot be used for applications that come into contact with food with an alcohol concentration of more than 15%. ●When using this product, please check the safety of the final product under actual usage conditions using this product before using it. ●The blue POM gear series is manufactured in an environment where cutting oil, etc. may be splashed on it.
