KG [Sold out and discontinued] S45C spur gear S2S 24A=2215 Shape A1 Module 2 Number of teeth 24 Tooth width 22mm Hole diameter Φ15mm S2S 24A=2215 1 piece

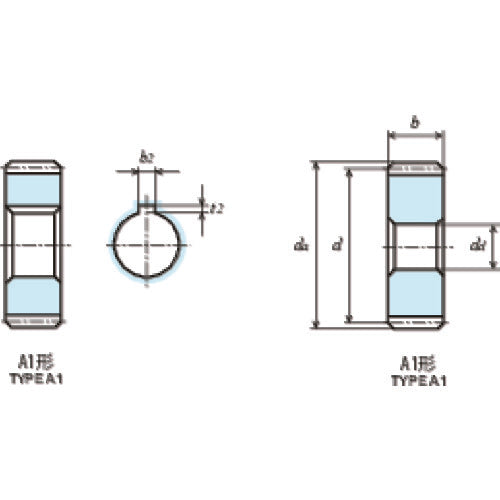

Catalog number: S2S 24A=2215 Features: ●Small precision gear. ●Spur gear that is easy to add additional processing. ●H at the end of the part number indicates that the teeth have been induction hardened. Applications: ●Used for general industrial machinery, medical equipment, and food machinery. Specifications: ●Module: 2 ●Number of teeth: 24 ●Shape: A1 ●Reference circle diameter (mm): φ48 ●Tooth width (mm): 22 ●Hole diameter (mm): φ15 ●Tooth tip circle diameter: φ52 ●Total length (mm): 22 ●Key groove b2×t2 (mm): 5×2.3 ●Tooth tip circle diameter (mm): φ52 ●Gear precision: JIS B 1702-1 (ISO) Grade 8 (High-quality hardened teeth: Grade 9) ●Tooth shape: Straight teeth ●Pressure angle: 20° Material/Finish: ●Carbon steel for machine construction (S45C) Set contents/Accessories: ●Key material is included.
