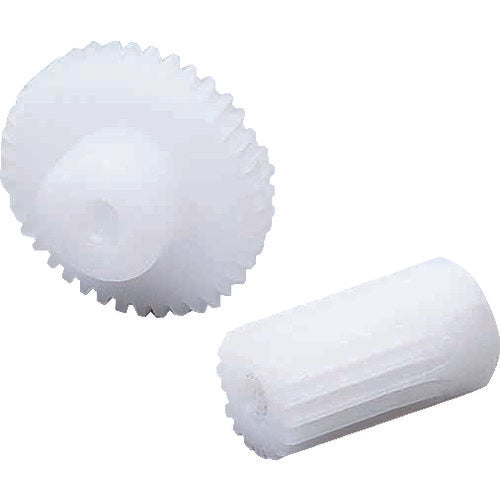

KG White POM Spur Gear S80D 28B-0505 Shape B1 Module 0.8 Number of teeth 28 S80D 28B-0505 1 pc

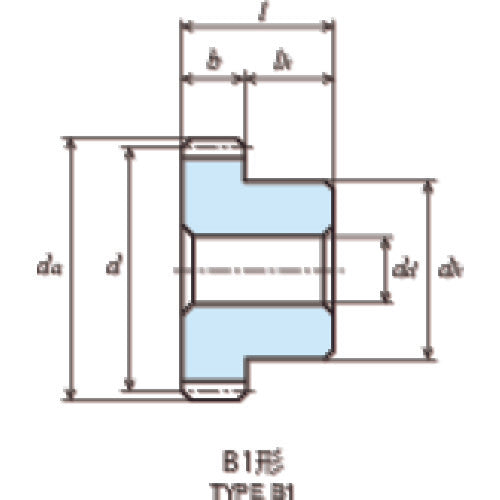

Catalog number: S80D 28B-0505 Features: ● Small precision gears. Applications: ● Used for general industrial machinery, medical equipment, and food machinery. Specifications: ● Module: 0.8 ● Number of teeth: 28 ● Shape: B1 ● Reference circle diameter (mm): φ22.4 ● Tooth width (mm): 5 ● Hole diameter (mm): φ5 ● Tooth tip circle diameter: φ24 ● Total length (mm): 14 ● Hub outer diameter (mm): φ12.5 ● Tooth tip circle diameter (mm): φ24 ● Hub length (mm): 9 ● Gear precision: JIS B 1702-1 (ISO) grades 9 to 10 ● Tooth shape: Straight teeth ● Pressure angle: 20° Material/Finish: ● Polyacetal (white) Set contents/Accessories: ● Comes with wave spring pin, nominal diameter φ1 (stainless steel)
