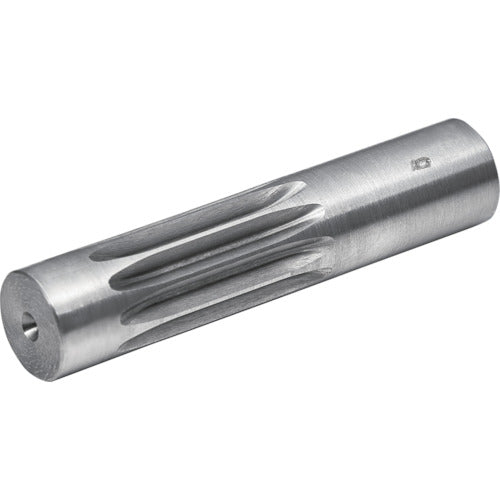

KG S45C Spur Gear S1S 8L-1210F Shape L1 Module 1 Number of teeth 8 S1S 8L-1210F 1 piece

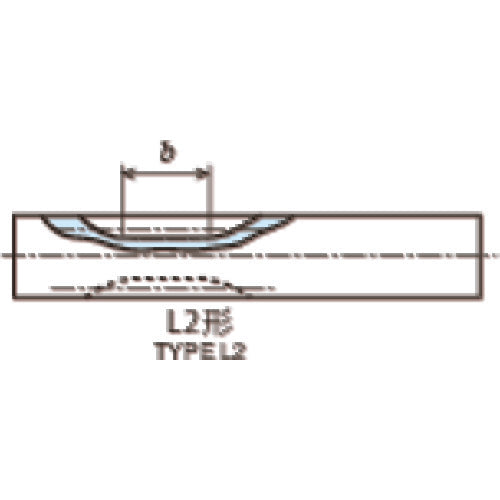

Catalog number: S1S 8L-1210F Features: ● Small precision gear. ● Part numbers ending in H indicate that the teeth have been induction hardened. Applications: ● Used in general industrial machinery, medical equipment, and food machinery. Specifications: ● Module: 1 ● Number of teeth: 8 ● Shape: L2 ● Tooth width (mm): 12 ● Tooth tip circle diameter: φ10.64 ● Overall length (mm): 60 ● Hub outer diameter (mm): φ10.64 ● Tooth tip circle diameter (mm): φ10.64 ● Hub length (mm): L16 R32 ● Gear precision: JIS B 1702-1 (ISO) Grade 8 (Induction hardened teeth: Grade 9) ● Tooth shape: Straight teeth ● Pressure angle: 20° Material/Finish: ● S45C (Carbon steel for mechanical construction)
