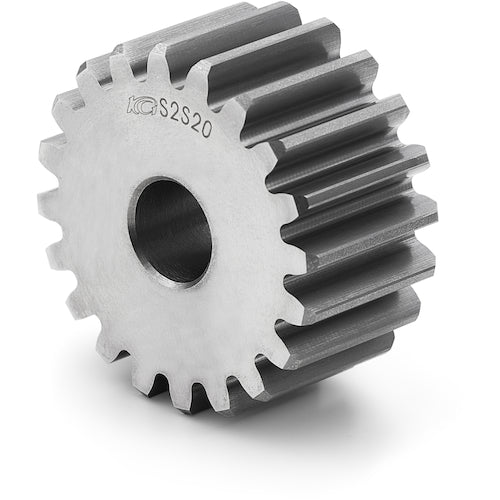

KG S45C Spur Gear S2S 20A-2212F Shape A1 Module 2 Number of teeth 20 Tooth width 22mm Hole diameter Φ12mm S2S 20A-2212F 1 pc

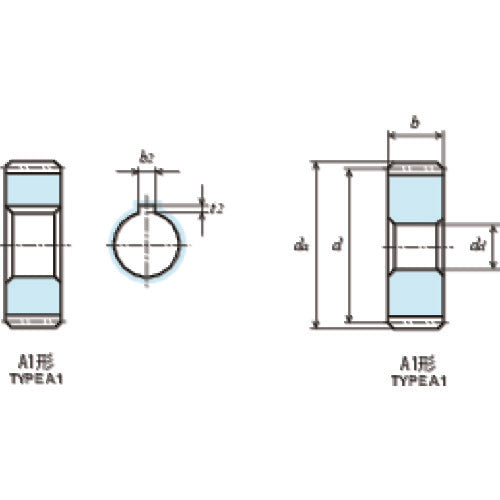

Catalogue number: S2S 20A-2212F Features: ● Small precision gear. ● Spur gear that is easy to add additional processing. ● Part numbers ending in H indicate that the teeth have been induction hardened. Applications: ● Used in general industrial machinery, medical equipment, and food machinery. Specifications: ● Module: 2 ● Number of teeth: 20 ● Shape: A1 ● Reference circle diameter (mm): φ40 ● Tooth width (mm): 22 ● Hole diameter (mm): φ12 ● Tooth tip circle diameter: φ44 ● Overall length (mm): 22 ● Tooth tip circle diameter (mm): φ44 ● Gear precision: JIS B 1702-1 (ISO) Grade 8 (Induction hardened teeth: Grade 9) ● Tooth shape: Straight teeth ● Pressure angle: 20° Material/Finish: ● Carbon steel for mechanical construction (S45C)
