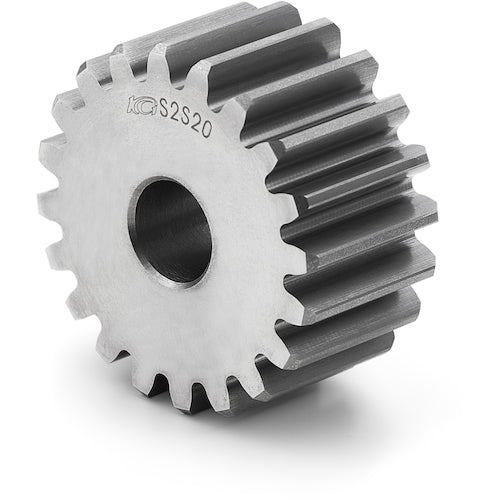

KG S45C Spur Gear S2S 24A-2214F Shape A1 Module 2 Number of teeth 24 Tooth width 22mm Hole diameter Φ14mm S2S 24A-2214F 1 pc

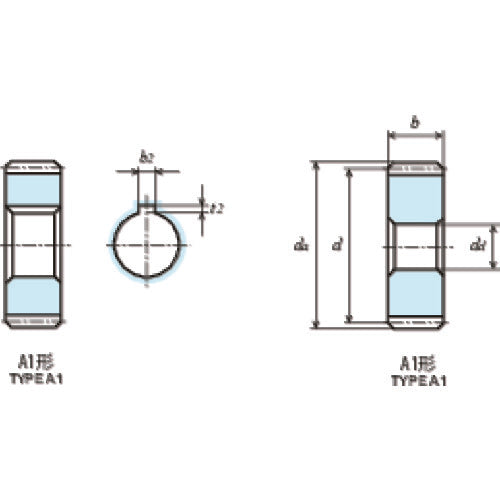

Catalogue number: S2S 24A-2214F Features: ● Small precision gear. ● Spur gear that is easy to add additional processing. ● Part numbers ending in H indicate that the teeth have been induction hardened. Applications: ● Used in general industrial machinery, medical equipment, and food machinery. Specifications: ● Module: 2 ● Number of teeth: 24 ● Shape: A1 ● Reference circle diameter (mm): φ48 ● Tooth width (mm): 22 ● Hole diameter (mm): φ14 ● Tooth tip circle diameter: φ52 ● Overall length (mm): 22 ● Tooth tip circle diameter (mm): φ52 ● Gear precision: JIS B 1702-1 (ISO) Grade 8 (High-quality tooth hardened product: Grade 9) ● Tooth shape: Straight teeth ● Pressure angle: 20° Material/Finish: ● Carbon steel for machine construction (S45C)
