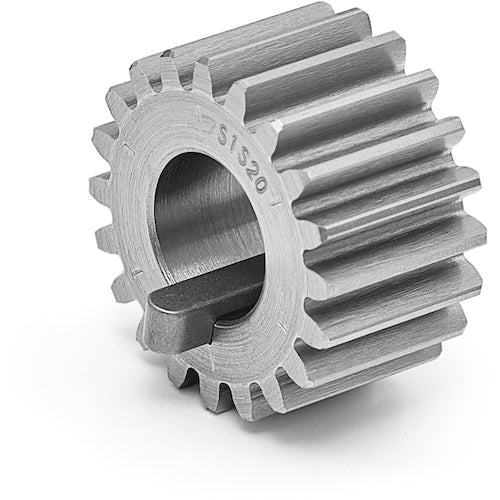

KG S45C spur gear S2S 24A=2220 Shape A1 Module 2 Number of teeth 24 Tooth width 22mm Hole diameter Φ20mm S2S 24A=2220 1 piece

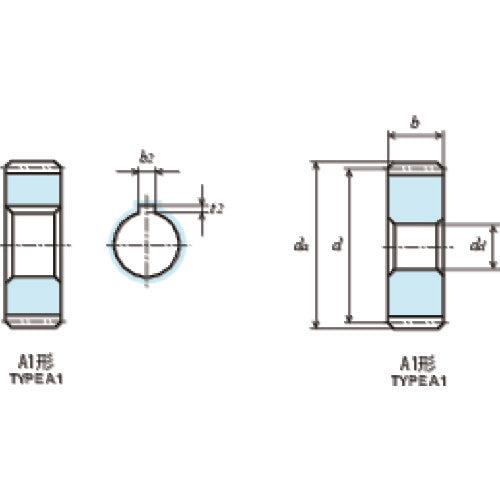

Catalog number: S2S 24A=2220 Features: ● Small precision gear. ● Spur gear that is easy to add additional processing. ● Part numbers ending in H indicate that the teeth have been induction hardened. Applications: ● Used for general industrial machinery, medical equipment, and food machinery. Specifications: ● Module: 2 ● Number of teeth: 24 ● Shape: A1 ● Reference circle diameter (mm): φ48 ● Tooth width (mm): 22 ● Hole diameter (mm): φ20 ● Tooth tip circle diameter: φ52 ● Total length (mm): 22 ● Key groove b2×t2 (mm): 6×2.8 ● Tooth tip circle diameter (mm): φ52 ● Gear precision: JIS B 1702-1 (ISO) Grade 8 (High-quality hardened teeth: Grade 9) ● Tooth shape: Straight teeth ● Pressure angle: 20° Material/Finish: ● Carbon steel for machine construction (S45C) Set contents/Accessories: ● Key material is included.
