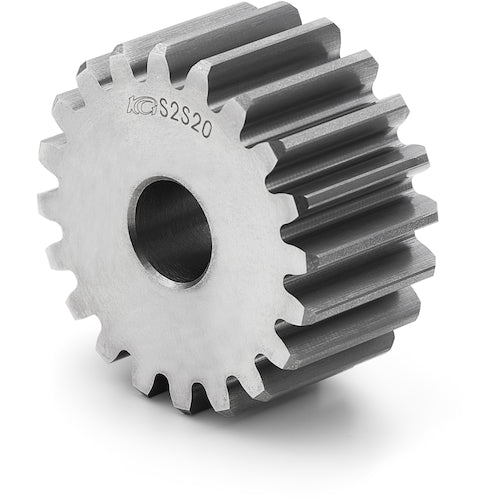

KG S45C Spur Gear S2S 35A-2020F Shape A1 Module 2 Number of teeth 35 Tooth width 20mm Hole diameter Φ20mm S2S 35A-2020F 1 piece

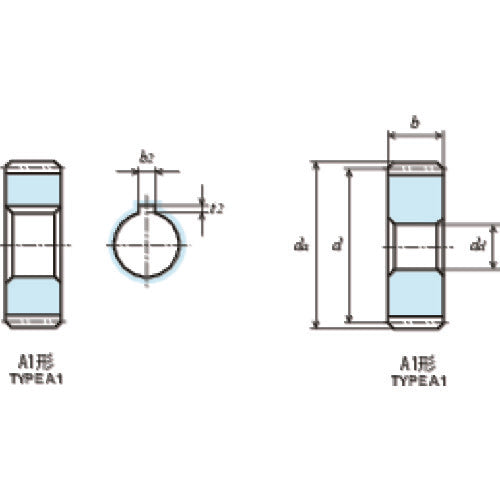

Catalogue number: S2S 35A-2020F Features: ● Spur gears that are easy to modify. ● Part numbers ending in H indicate that the teeth have been induction hardened. Applications: ● Used in general industrial machinery, medical equipment, and food machinery. Specifications: ● Module: 2 ● Number of teeth: 35 ● Shape: A1 ● Reference circle diameter (mm): φ70 ● Tooth width (mm): 20 ● Hole diameter (mm): φ20 ● Tooth tip circle diameter: φ74 ● Overall length (mm): 20 ● Tooth tip circle diameter (mm): φ74 ● Gear precision: JIS B 1702-1 (ISO) Grade 8 (Induction hardened teeth: Grade 9) ● Tooth shape: Straight teeth ● Pressure angle: 20° Material/Finish: ● Carbon steel for mechanical construction (S45C)
