KHK Bevel Gear SB3-1260 SB3-1260 1 pc

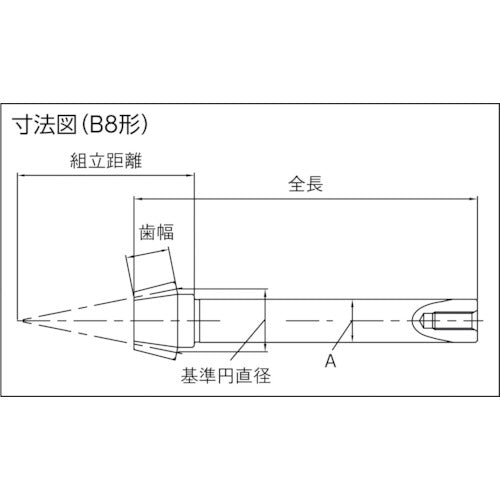

Catalog number: SB3-1260 Features: ● Used as a popular straight bevel gear. Applications: ● Power transmission gears. Specifications: ●Tooth ratio: 5 ●Module: 3 ●Number of teeth: 12 ●Pitch diameter (mm): φ36 ●Tooth width (mm): 22 ●Total length (mm): 172.19 ●Shape: B8 ●Tooth tip diameter (mm): φ44.48 ●Assembly distance (mm): 100 ●Boss diameter (mm): φ30 ●Boss length (mm): 9.4 ●Hole length (mm): 32.19 ●Gear precision: JIS B 1704: 1978: Class 3 ●Tooth form: Gleason ●Pressure angle: 20° ●Heat treatment: None ●Tooth surface hardness: (194HB or less) ●Surface treatment: Blackening ●Tooth surface finish: Cutting ●Gear cutting reference surface: Hole (H7) ●Can additional processing be done: Yes Material/Finish: ●S45C Note: ●This is sold as a single piece and not as a set.
