KHK Spiral Bevel Gear SBS3-2030L SBS3-2030L 1 pc

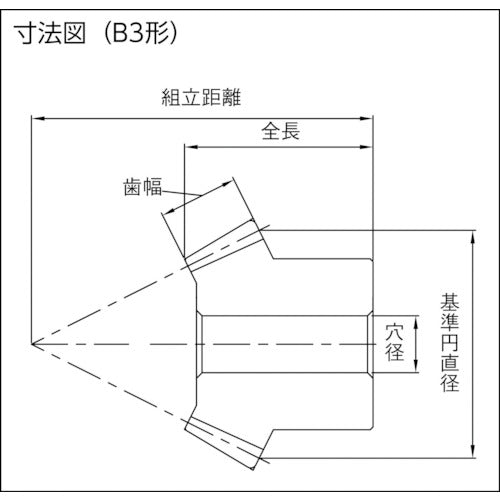

Catalog number: SBS3-2030L Features: ●A popular spiral bevel gear with a wide range of modules and tooth ratios. Applications: ●Power transmission gears. Specifications: ●Tooth ratio: 1.5 ●Module: 3 ●Number of teeth: 20 ●Pitch diameter (mm): φ60 ●Tooth width (mm): 17 ●Hole diameter (mm): φ16 ●Total length (mm): 40.17 ●Shape: B3 ●Tooth tip diameter (mm): φ65.58 ●Assembly distance (mm): 70 ●Twist direction: L ●Boss diameter (mm): φ45 ●Boss length (mm): 20 ●Hole length (mm): 37 ●Gear precision: JIS B1704: 1978: Class 4 ●Tooth shape: Gleason ●Pressure angle: 20° ●Heat treatment: High-frequency hardening of tooth surface ●Tooth surface hardness: 50-60HRC ●Surface treatment: Blackening ●Tooth surface finish: Cutting ●Gear cutting reference surface: Hole ●Twist angle: 35° ●Can additional processing be done: Yes Material/Finish: ●S45C Note: ●This is sold individually and not as a set.
