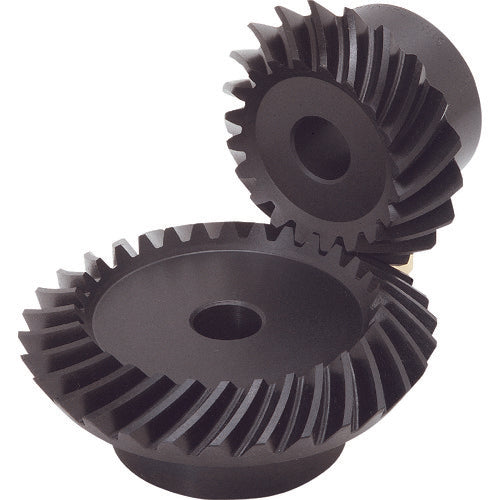

KHK Spiral Bevel Gear SBS5-4020R SBS5-4020R 1 pc

Catalogue number: SBS5-4020R Features: ● A popular spiral bevel gear with a wide range of modules and tooth ratios available. Applications: ● Power transmission gears. Specifications: ●Tooth ratio: 2 ●Module: 5 ●Number of teeth: 40 ●Pitch diameter (mm): φ200 ●Tooth width (mm): 30 ●Hole diameter (mm): φ25 ●Total length (mm): 55.02 ●Shape: B5 ●Tooth tip diameter (mm): φ202.54 ●Assembly distance (mm): 90 ●Twist direction: R ●Boss diameter (mm): φ100 ●Boss length (mm): 34 ●Hole length (mm): 50 ●Gear precision: JIS B 1704: 1978: Class 4 ●Tooth shape: Gleason ●Pressure angle: 20° ●Heat treatment: High-frequency hardening of tooth surface ●Tooth surface hardness: 50-60HRC ●Surface treatment: Blackening ●Tooth surface finish: Cutting ●Gear cutting reference surface: Hole ●Twist angle: 35° ●Can additional processing be done: Yes Material/Finish: ●S45C Note: ●This is sold individually and not as a set.
