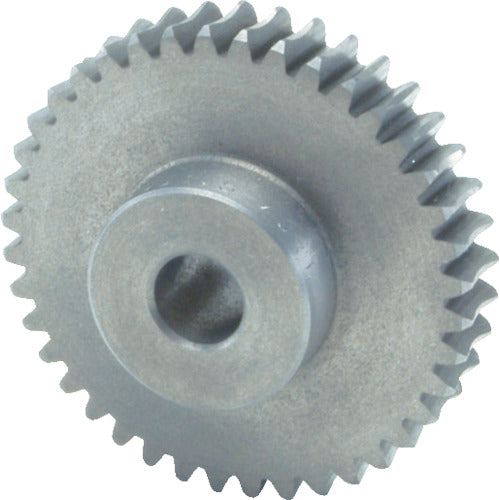

KHK Worm Wheel CG2-50L1 CG2-50L1 1 piece

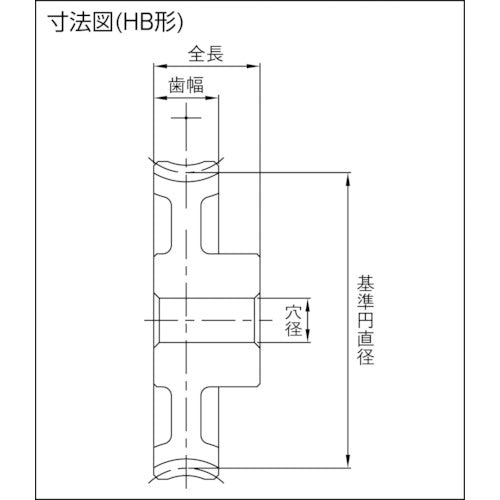

Catalog number: CG2-50L1 Features: ●A versatile, general-purpose worm wheel available in a wide range of modules and numbers of teeth at a low price. Applications: ●Power transmission gears. Specifications: ● Module: 2 ● Number of teeth: 50 ● Hole diameter (mm): φ12 ● Tooth shape: Straight teeth ● Shape: H1 ● Reference circle diameter (mm): φ100.21 ● Reduction ratio: 50 ● Tooth width (mm): 22 ● Number of threads: 1 ● Tooth tip circle diameter (mm): φ106 ● Overall length (mm): 35 ● Boss diameter (mm): φ45 ● Assembly distance (mm): 65.5 ● Boss length (mm): 13 ● Overall length: 35 ● Boss diameter: 48 ● Tooth tip circle diameter: 106 ● Reference circle diameter: 100.21 ● Tooth width: 22 ● Boss length (right): 13 ● Twist direction: L ● Gear precision: KHKW002: Class 4 ● Pressure angle: 20°/14°30′ ● Heat treatment: None ● Tooth surface finish: None ● Gear cutting reference surface: Hole (H7) ● Additional processing possible: Yes Material/Finish: ● FC200 Note: This is a single item, not a set.
