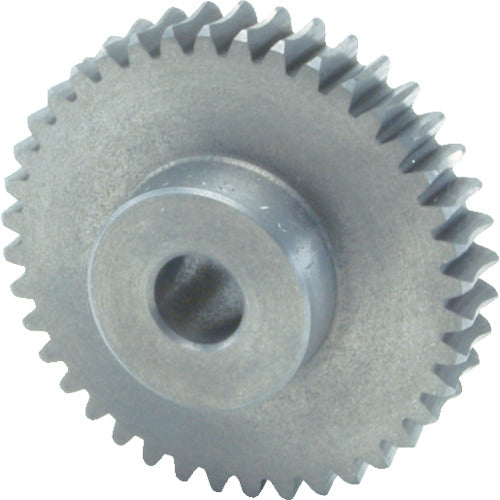

KHK Worm Wheel CG3-50L1 CG3-50L1 1 piece

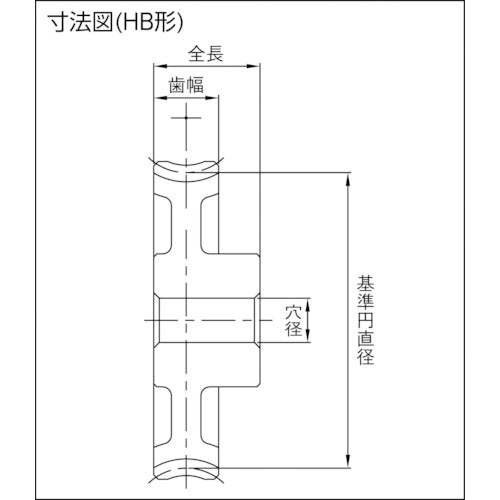

Catalog number: CG3-50L1 Features: ●A versatile, general-purpose worm wheel available in a wide range of modules and numbers of teeth at a low price. Applications: ●Power transmission gears. Specifications: ● Module: 3 ● Number of teeth: 50 ● Hole diameter (mm): φ20 ● Tooth shape: Straight teeth ● Shape: HB ● Reference circle diameter (mm): φ150.35 ● Reduction ratio: 50 ● Tooth width (mm): 30 ● Number of threads: 1 ● Tooth tip circle diameter (mm): φ159 ● Overall length (mm): 45 ● Boss diameter (mm): φ63 ● Assembly distance (mm): 97 ● Boss length (mm): 15 ● Overall length: 45 ● Boss diameter: 63 ● Tooth tip circle diameter: 159 ● Reference circle diameter: 150.35 ● Tooth width: 30 ● Boss length (right): 15 ● Twist direction: L ● Gear precision: KHKW002: Class 4 ● Pressure angle: 20°/14°30′ ● Heat treatment: None ● Tooth surface finish: None ● Gear cutting reference surface: Hole (H7) ● Additional processing possible: Yes Material/Finish: ● FC200 Note: This is a single item, not a set.
