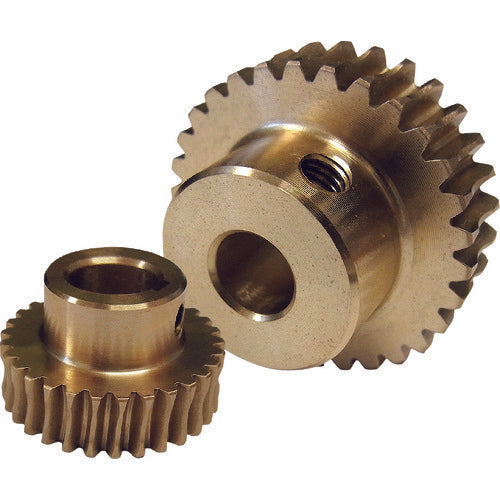

KHK Worm Wheel AG1-40R1J12 AG1-40R1J12 1 piece

Catalog number: AG1-40R1J12 Features: ● Worm wheel made of aluminum bronze with excellent wear resistance. Applications: ● Power transmission gears Specifications: ● Module: 1 ● Hole diameter (mm): φ12 ● Shape: H1K ● Keyway: 4 × 1.8 ● Tap: M4 ● Tap position: 5 ● Reference circle diameter d (mm): 40 ● Worm twist direction and number of threads (mm): 1 ● Gear precision: Equivalent to KHK W002 Class 2 Notes: ● This product is a contracted product, so the manufacturer will complete it within 3 days after the order is placed. (Logistics is not included) ● This product cannot be canceled as it will be processed immediately after the order is placed. ● It is sold as a single item, not as a set.
