KHK Stainless Steel Rack SURF3-1000 SURF3-1000 1 pc

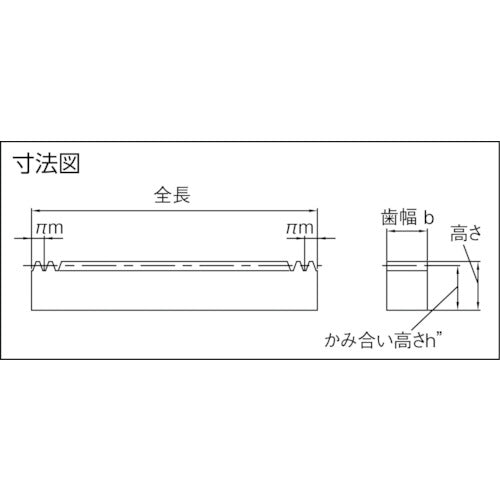

Catalog number: SURF3-1000 Features: ● Made of SUS304 material, it is ideal for food machinery and other applications where rust is unacceptable. Applications: ● Power transmission gears. Specifications: ● Module: 3 ● Overall length (mm): 999.03 ● Effective number of teeth: 106 ● Mesh height h” (mm): 32 ● Tooth width b (mm): 30 ● Height (mm): 35 ● Shape: RF ● Mesh height (mm): 32 ● Tooth width (mm): 30 ● Gear precision: KHKR001: Grade 5 ● Tooth shape: Straight teeth ● Pressure angle: 20° ● Heat treatment: Solution treatment ● Tooth surface finish: Cutting ● Gear cutting reference surface: Hole (H7) ● Twist angle: 45° ● Additional processing possible: Yes Material/Finish: ● SUS304 Note: ● Sold individually, not as a set.
