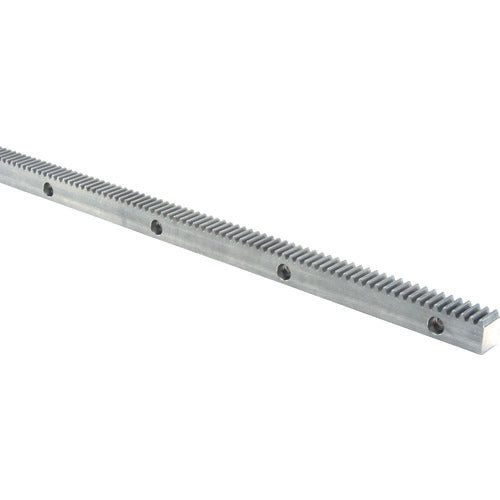

KHK Stainless Steel Rack SURFD1.5-1000 SURFD1.5-1000 1 pc

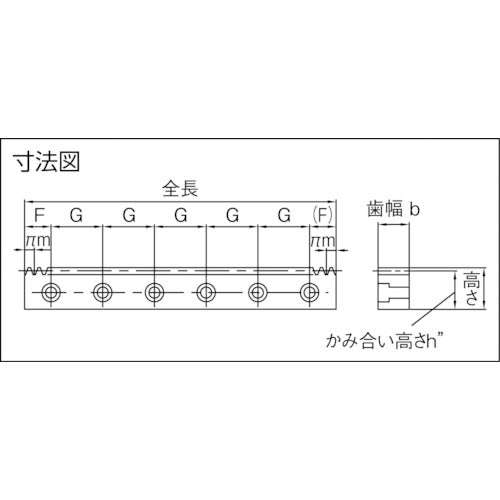

Catalog number: SURFD1.5-1000 Features: ● Made of SUS304 material, ideal for food machinery and other applications where rust is unacceptable. ● Complete product with mounting holes. Applications: ● Power transmission gears. Specifications: ●Module: 1.5 ●Total length (mm): 999.03 ●Effective number of teeth: 212 ●Meshing height h” (mm): 18.5 ●Tooth width b (mm): 15 ●Height (mm): 20 ●Shape: RD ●Meshing height (mm): 18.5 ●Tooth width (mm): 15 ●Mounting hole dimension (mm) F: 49.5 ●Mounting hole dimension (mm) G: 180 ●Mounting hole dimension (mm) I: 10 ●Number of mounting holes: 6 ●Mounting holes: (for M5) ●Gear precision: KHKR001: Grade 5 ●Tooth shape: Straight teeth ●Pressure angle: 20° ●Heat treatment: Solution treatment ●Tooth surface finish: Cutting ●Gear cutting reference surface: Hole (H7) ●Twist angle: 45° ●Can additional processing be performed: Yes Material/Finish: ●SUS304 Note: ●This is sold as a single piece and not a set.
