KHK Stainless Steel Spur Gear SUSA2.5-48 SUSA2.5-48 1 pc

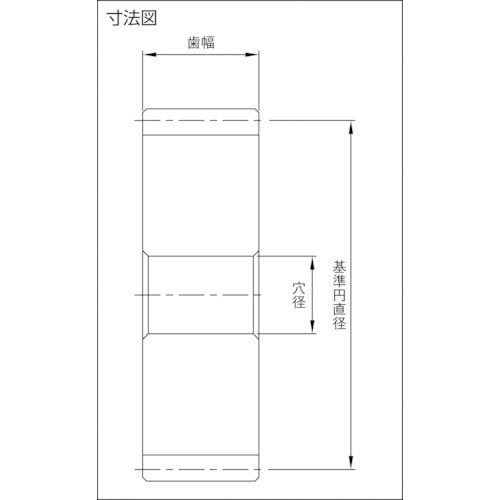

Catalog number: SUSA2.5-48 Features: ● Spur gears made of SUS303 material, resistant to rust. Applications: ● Power transmission gears. Specifications: ● Module: 2.5 ● Number of teeth: 48 ● Shape: S5 ● Reference circle diameter (mm): φ120 ● Tooth width (mm): 25 ● Hole diameter (mm): φ20 ● Total length (mm): 25 ● Tooth tip circle diameter (mm): φ125 ● Gear precision: JIS B1702-1N8 grade ● Tooth shape: Straight teeth ● Pressure angle: 20° ● Heat treatment: None ● Tooth surface hardness: (187HB or less) ● Surface treatment: None ● Tooth surface finish: Cutting ● Gear cutting reference surface: Hole (H7) ● Twist angle: - ● Additional processing possible: Yes Material/Finish: ● SUS303 Note: ● Sold individually, not as a set.
