KHK Stainless Steel Spur Gear SUS2.5-22 Regular Teeth SUS2.5-22 1 pc

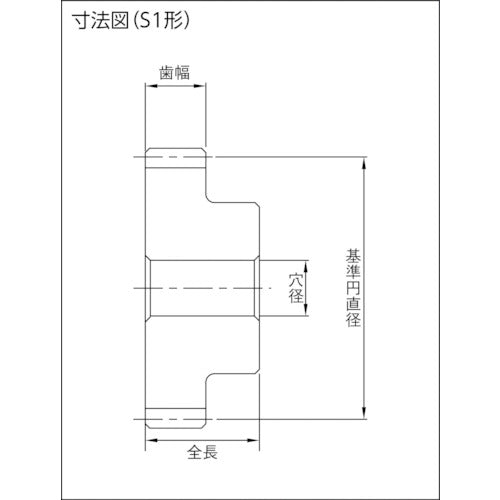

Catalog number: SUS2.5-22 Features: ● Spur gears made of SUS303 material, resistant to rust. Applications: ● Power transmission gears. Specifications: ● Module: 2.5 ● Number of teeth: 22 ● Shape: S1 ● Reference circle diameter (mm): φ55 ● Tooth width (mm): 25 ● Hole diameter (mm): φ15 ● Tooth tip circle diameter: 60 ● Total length (mm): 43 ● Boss diameter (mm): 44 ● Tooth tip circle diameter (mm): φ60 ● Boss length (mm): 18 ● Gear precision: JIS B1702-1N8 grade ● Tooth shape: Straight teeth ● Pressure angle: 20° ● Heat treatment: None ● Tooth surface hardness: (187HB or less) ● Surface treatment: None ● Tooth surface finish: Cutting ● Gear cutting reference surface: Hole (H7) ● Twist angle: - ● Additional processing possible: Yes Material/Finish: ● SUS303 Note: ● Sold individually, not as a set.
