KHK Stainless Steel Spur Gear SUS4-25 Regular Teeth SUS4-25 1 pc

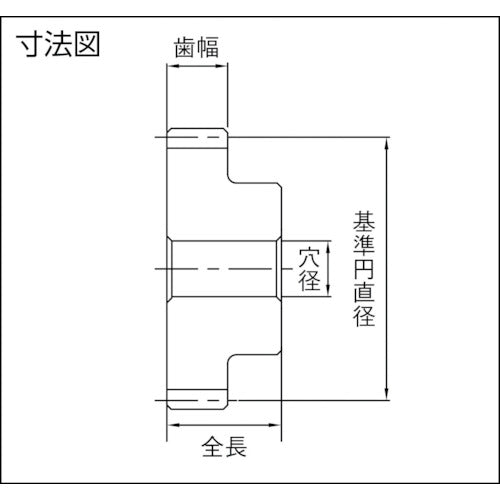

Catalog number: SUS4-25 Features: ● Spur gears made of SUS303 material, resistant to rust. Applications: ● Power transmission gears. Specifications: ● Module: 4 ● Number of teeth: 25 ● Shape: S1 ● Reference circle diameter (mm): φ100 ● Tooth width (mm): 40 ● Hole diameter (mm): φ20 ● Tooth tip circle diameter: 108 ● Total length (mm): 65 ● Boss diameter (mm): 84 ● Tooth tip circle diameter (mm): φ108 ● Boss length (mm): 25 ● Gear precision: JIS B1702-1N8 grade ● Tooth shape: Straight teeth ● Pressure angle: 20° ● Heat treatment: None ● Tooth surface finish: Cutting ● Gear cutting reference surface: Hole (H7) ● Twist angle: - ● Additional processing possible: Yes Material/Finish: ● SUS303 Note: ● Sold individually, not as a set.
