KHK Spiral Miter SMS1.5-25R Gleason SMS1.5-25R 1 pc

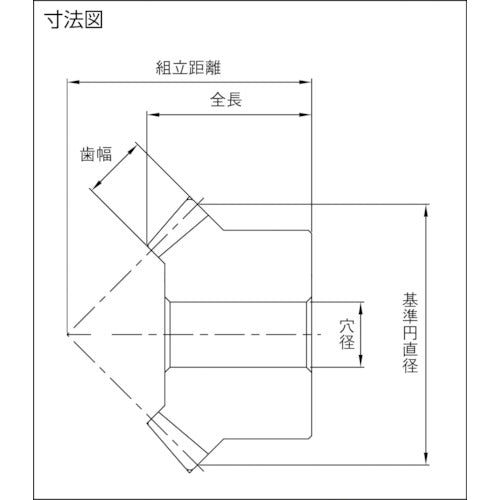

Catalog number: SMS1.5-25R Features: ● A popular spiral miter gear with many modules and numbers of teeth, making it versatile. Applications: ● Power transmission gears. Specifications: ●Module: 1.5 ●Number of teeth: 25 ●Pitch diameter (mm): φ37.5 ●Assembly distance (mm): 34 ●Hole diameter (mm): φ10 ●Total length (mm): 22.14 ●Tooth width (mm): 9 ●Shape: B3 ●Twist angle: -35 ●Tooth tip diameter (mm): φ39.31 ●Twist direction: R ●Boss diameter (mm): φ30 ●Boss length (mm): 11.5 ●Hole length (mm): 19 ●Tooth ratio: 1 ●Clamp diameter: 19.54 ●Gear precision: JIS B1704: 1978: Class 4 ●Tooth form: Gleason ●Pressure angle: 20° ●Heat treatment: High-frequency hardening of tooth surface ●Surface treatment: Blackening ●Tooth surface finish: Cutting ●Gear cutting reference surface: Hole ●Can additional processing be done: Yes Material/Finish: ●S45C Note: ●This is sold individually and not as a set.
