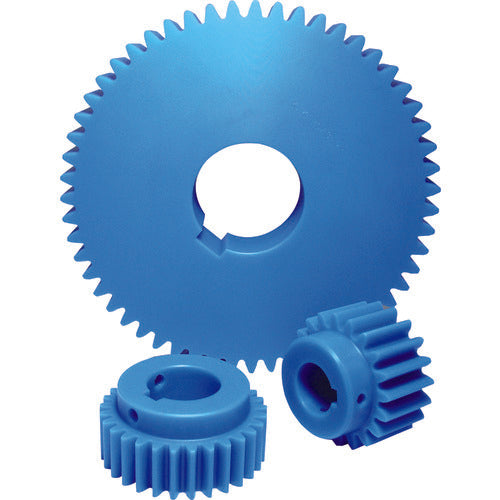

KHK Plastic Spur Gear PS1.5-75 PS1.5-75 1 piece

Catalog number: PS1.5-75 Features: ●Made of MC nylon that can be used without lubrication, ideal for food machinery, etc. ●Ideal for food machinery, etc. Applications: ●Power transmission gears. Specifications: ●Module: 1.5 ●Number of teeth: 75 ●Shape: S1 ●Pitch circle diameter (mm): φ112.5 ●Tooth width (mm): 15 ●Hole diameter (mm): φ12 ●Total length (mm): 25 ●Boss diameter (mm): φ50 ●Tooth tip circle diameter (mm): φ115.5 ●Boss length (mm): 10 ●Gear precision: JIS B 1702-1 N9 grade ●Tooth surface hardness: (115-120HRR) ●Tooth form: Straight teeth ●Surface treatment: None ●Pressure angle: 20° ●Tooth surface finish: Cutting ●Gear cutting reference surface: Hole ●Heat treatment: None ●Twist angle: ●Can additional processing be done: Yes Material/Finish: ●MC901 Note: ●This is sold as a single piece and not a set.
