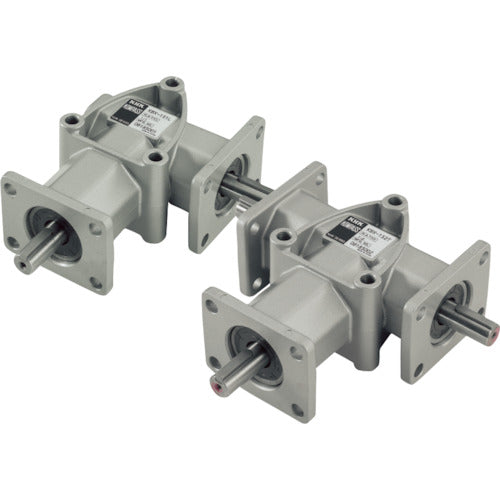

KHK Bevel Box KBX-202L KBX-202L 1 piece

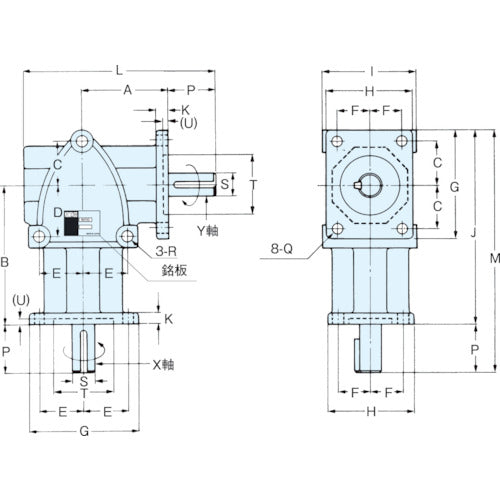

Catalogue number: KBX-202L Features: ●Simple structure with aluminum die-cast case. ●Uses spiral bevel gears made of special steel that has been carburized and quenched. ●The gear ratio can be selected from 1 or 2 depending on the application. ●The specified amount of lubricant is filled in at the factory before shipping. Applications: ●For power transmission gears. Specifications: ●Reduction ratio: 1/2●Backlash ('): 15' - 60'●Shape: L●Shaft diameter tolerance: JIS h7●A: 80●B: 120●C: 36●D: 36●E: 36●F: 26●G: 92●H: 72●I: 76●J: 166●K: 10●L: 168●M: 206●P: 40●Q (φ): 8.5●R (φ): 8.5●S (φ): 20●T (φ): 52●U: 4●Key: 6 x 6 x 35L●Ambient temperature: -10°C - 40°C●Ambient humidity: 80% or less●Installation location: Indoors Material/Finish: ●Aluminum die-cast Note: ●Installation location: Indoors (place free of corrosive gases, steam, etc., and well-ventilated place free of dust and dirt). ●Additional work such as bolt holes cannot be done on the case. ●Please do not disassemble or modify the product as this may damage the equipment. ●Please operate the load torque and OHL (overhang load) within the allowable range. ●This product is sold individually, not as a set.
