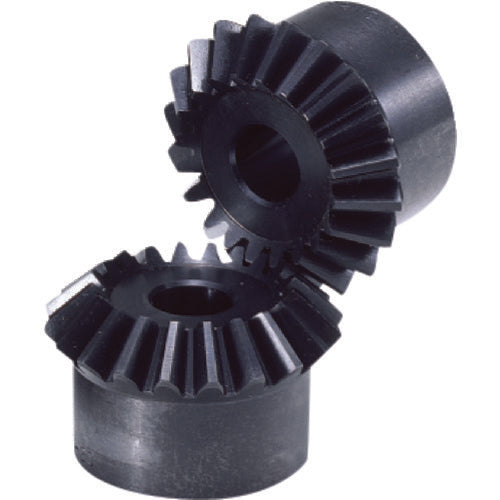

KHK Miter MM4-25 MM4-25 1 piece

Catalog number: MM4-25 Features: ●Compared to SM miter gears, it has superior strength and wear resistance and can be additionally machined. Applications: ●Power transmission gears. Specifications: ●Module: 4 ●Number of teeth: 25 ●Pitch circle diameter (mm): φ100 ●Assembly distance (mm): 80 ●Hole diameter (mm): φ25 ●Total length (mm): 49.32 ●Tooth width (mm): 25 ●Shape: B3 ●Tooth tip circle diameter (mm): φ105.66 ●Boss diameter (mm): φ85 ●Boss length (mm): 22.5 ●Hole length (mm): 44 ●Tooth ratio: 1 ●Gear precision: JIS B 1704: 1978: Class 4 ●Tooth surface hardness: 55-60 HRC ●Tooth shape: Gleason ●Surface treatment: Blackening ●Pressure angle: 20° ●Tooth surface finish: Cutting ●Gear cutting reference surface: Hole (H7) ●Heat treatment: Carburized and hardened ●Additional processing possible: Additional processing is possible on the carburized parts. Material/Finish: ●SCM415 Note: ●This is sold individually and not as a set.
