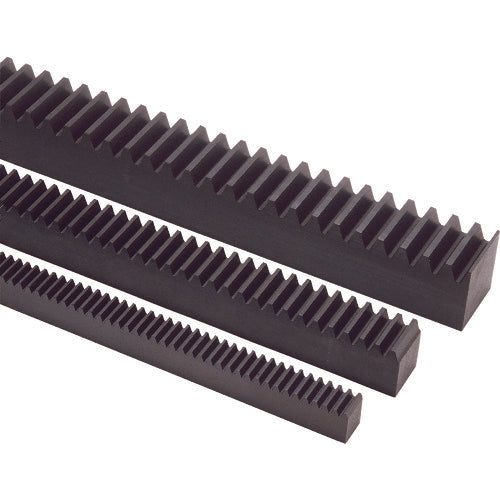

KHK Rack SR4-500, straight teeth SR4-500, 1 piece

Catalogue number: SR4-500 Features: ●A wide variety of modules and lengths are available, making it versatile at a low price. Applications: ●Power transmission gears. Specifications: ●Module: 4 ●Total length (mm): 505 ●Effective number of teeth: 39 ●Height (mm): 45 ●Shape: R1 ●Meshing height (mm): 41 ●Tooth width (mm): 40 ●Gear precision: KHK R 001: Grade 4 ●Tooth surface hardness: (95HRB or less) ●Tooth shape: Straight teeth ●Surface treatment: Blackening ●Pressure angle: 20° ●Tooth surface finish: Cutting ●Gear cutting reference surface: Bottom surface ●Heat treatment: None ●Additional processing possible: Yes Material/Finish: ●S45C Note: ●This is a single item, not a set.
