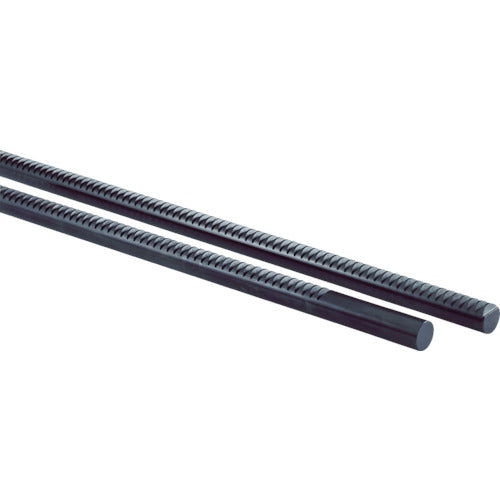

KHK Round Rack SRO4-1000 SRO4-1000 1 pc

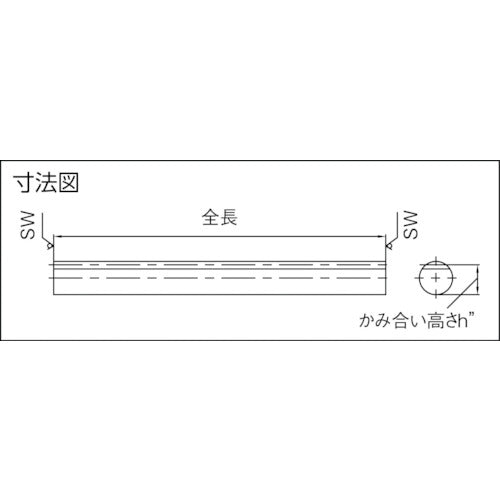

Catalogue number: SRO4-1000 Features: ● Useful for reciprocating the rack side. Applications: ● Power transmission gears. Specifications: ● Module: 4 ● Overall length (mm): 1010 ● Effective number of teeth: 79 ● Mesh height h” (mm): 36 ● Tooth width b (mm): 40 ● Outside diameter (mm): 40 ● Shape: R2 ● Mesh height (mm): 36 ● Outside diameter: 40 ● Gear precision: KHKR001: Grade 4 ● Tooth shape: Straight teeth ● Pressure angle: 20° ● Heat treatment: None ● Tooth surface hardness: (95HRB or less) ● Surface treatment: Blackening ● Tooth surface finish: Cutting ● Additional processing possible: Yes Material/Finish: ● S45C Note: ● Sold individually, not as a set.
