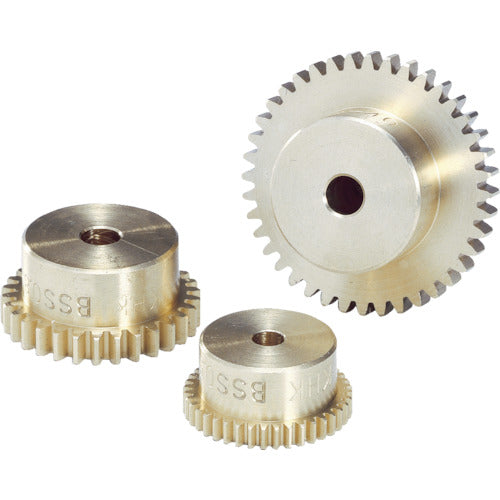

KHK Spur Gear BSS0.8-25 BSS0.8-25 1 pc

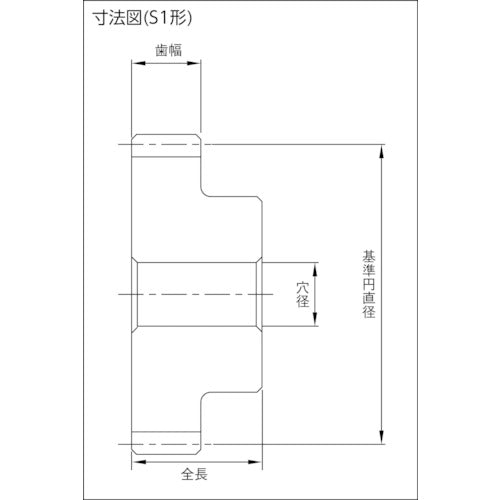

Catalog number: BSS0.8-25 Features: ● Small spur gear that is resistant to rust. ● Can be used in conjunction with DS spur gears. Applications: ● Gears for power transmission. Specifications: ● Module: 0.8 ● Number of teeth: 25 ● Shape: S1 ● Reference circle diameter (mm): φ20 ● Tooth width (mm): 4 ● Hole diameter (mm): φ5 ● Total length (mm): 12 ● Boss diameter (mm): φ17 ● Tooth tip circle diameter (mm): φ21.6 ● Boss length (mm): 8 ● Gear precision: JIS B1702-1N8 grade ● Tooth shape: Straight teeth ● Pressure angle: 20° ● Heat treatment: None ● Tooth surface hardness: (80HV or higher) ● Surface treatment: None ● Tooth surface finish: Cutting ● Gear cutting reference surface: Hole (H7) ● Twist angle: - ● Additional processing possible: Yes Material/Finish: ● Free-cutting brass (C3604) Note: ● Sold individually, not as a set.
