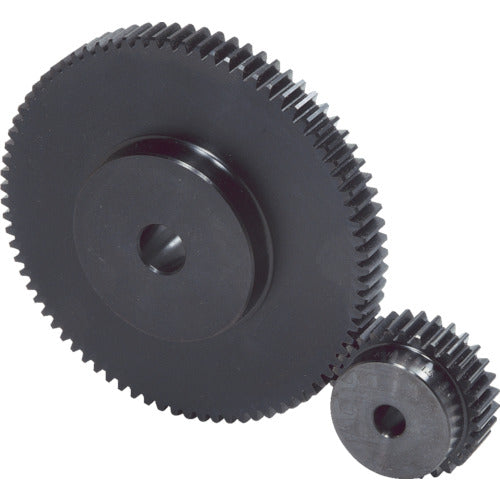

KHK Spur Gear SS2.5-100, Regular Teeth SS2.5-100, 1 Piece

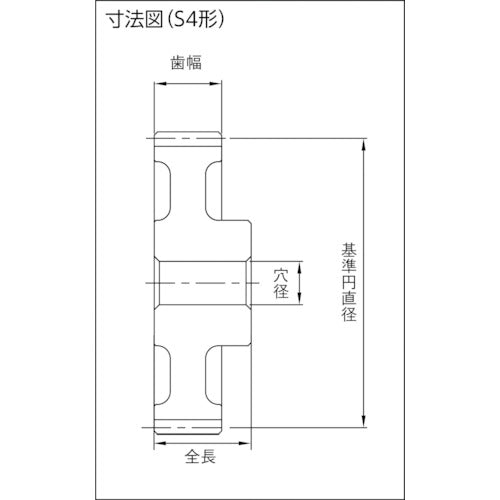

Catalog number: SS2.5-100 Features: ●A wide variety of modules and numbers of teeth are available, making it low-priced and highly versatile. ●A finished product that does not require any additional processing. Applications: ●Power transmission gears. Specifications: ●Module: 2.5 ●Number of teeth: 100 ●Shape: S4 ●Reference circle diameter (mm): φ250 ●Tooth width (mm): 25 ●Hole diameter (mm): φ30 ●Tooth tip circle diameter: 255 ●Total length (mm): 37 ●Boss diameter (mm): φ90 ●Tooth tip circle diameter (mm): φ255 ●Boss length (mm): 12 ●Gear precision: JIS B1702-1N8 grade ●Tooth shape: Straight teeth ●Pressure angle: 20° ●Heat treatment: None ●Tooth surface finish: Cutting ●Gear cutting reference surface: Hole (H7) ●Twist angle: - ●Additional processing possible: Yes Material/Finish: ●S45C Note: ●This is a single item, not a set.
