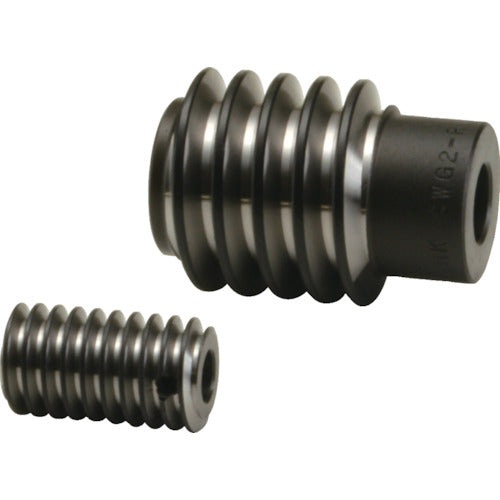

KHK Geared Worm SWG1.5-R1J10 SWG1.5-R1J10 1 pc

Catalog number: SWG1.5-R1J10 Features: ●A reasonably priced ground worm with high-frequency hardened teeth. Applications: ●Power transmission gears. Specifications: ● Module: 1.5 ● Number of grooves: 1 ● Reference circle diameter (mm): 25 ● Hole diameter (mm): 10 ● Shape: W1K ● Tooth width (mm): 30 ● Overall length (mm): 40 ● Boss diameter (mm): 20 ● Lead angle: 3°26′ ● Tooth tip circle diameter: 28 ● Hole length: 40 ● Boss length (right): 10 ● Tap: M4 ● Key groove: 4 × 1.8 ● Screw hole position: 5 ● Twist direction: R ● Worm twist direction and number of grooves (mm): R1 ● Gear precision: KHK W 001: Equivalent to grade 2 ● Tooth surface hardness: 50-60HRC ● Tooth shape: Straight teeth ● Surface treatment: Blackening except for ground parts (Additional processing parts are not re-blackened.) ● Pressure angle: 20° ● Tooth surface finish: Grinding ● Gear cutting reference surface: Hole (H7) ● Heat treatment: Tooth surface high-frequency hardening ● Additional processing possible: No Material/Finish: S45C Note: This product is a contracted product, so it will be completed by the manufacturer within 3 days of ordering. (Logistics is not included.) This product cannot be canceled as it will be processed immediately after ordering. This is sold as a single item, not as a set.
