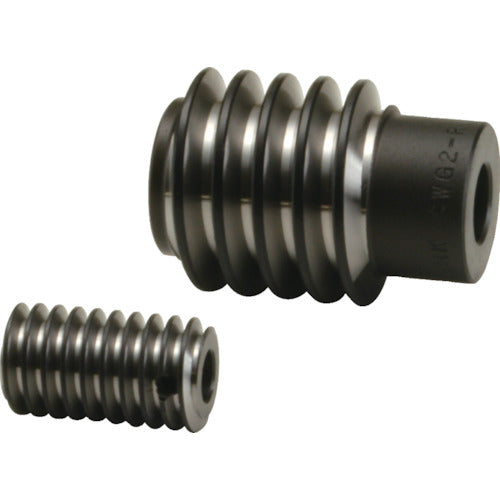

KHK Geared Worm SWG1-R1 SWG1-R1 1 pc

Catalog number: SWG1-R1 Features: ● Reasonably priced ground worm. ● Tooth surface is induction hardened. Applications: ● Power transmission gears. Specifications: ● Right/Left twist: R ● Module: 1 ● Number of threads: 1 ● Reference circle diameter (mm): 16 ● Hole diameter (mm): 8 ● Shape: W2 ● Total length: 32 ● Tooth tip circle diameter: 18 ● Tooth width: 20 ● Lead angle: 3°35′ ● Gear precision: KHKW001: Class 2 ● Tooth shape: Straight teeth ● Heat treatment: Induction hardening of tooth surface ● Pressure angle: 20° ● Tooth surface hardness: 50-60HRC ● Surface treatment: Blackening except for ground parts ● Tooth surface finish: Grinding ● Gear cutting reference surface: Hole (H7) ● Additional processing possible: Yes Material/Finish: ● S45C Note: ● Sold individually, not as a set.
