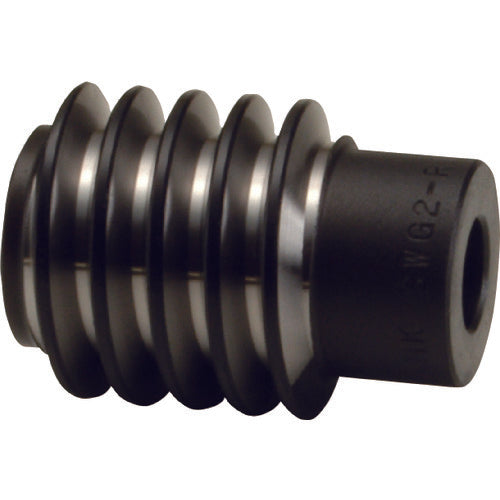

KHK Geared Worm SWG2.5-R1 SWG2.5-R1 1 pc

Catalog number: SWG2.5-R1 Features: * Reasonably priced ground worm. * Tooth surface is induction hardened. Applications: * Power transmission gears. Specifications: ●Twist right/left: R ●Module: 2.5 ●Number of threads: 1 ●Pitch diameter (mm): 37 ●Hole diameter (mm): 15 ●Shape: W3 ●Total length: 65 ●Boss diameter: 30 ●Tooth tip diameter: 42 ●Tooth width: 45 ●Lead angle: 3°52′ ●Boss length (right): 17 ●Boss length (left): 3 ●Gear precision: KHKW001: Class 2 ●Tooth form: Straight teeth ●Pressure angle: 20° ●Heat treatment: High-frequency hardening of tooth surface ●Tooth surface hardness: 50-60HRC ●Surface treatment: Blackening except for ground parts ●Tooth surface finish: Grinding ●Gear cutting reference surface: Hole (H7) ●Can additional processing be done: Yes Material/Finish: ●S45C Note: ●Sold as a single piece, not a set.
