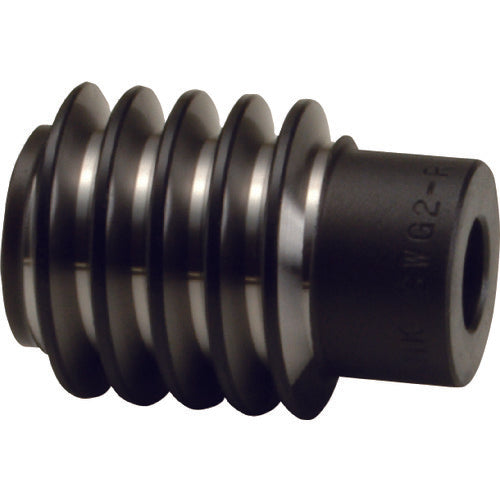

KHK Geared Worm SWG3-R2 SWG3-R2 1 pc

Catalog number: SWG3-R2 Features: ● Reasonably priced ground worm. ● Tooth surface is induction hardened. Applications: ● Power transmission gears. Specifications: ●Twist right/left: R ●Module: 3 ●Number of threads: 2 ●Pitch circle diameter (mm): 44 ●Hole diameter (mm): 16 ●Shape: W3 ●Total length: 74 ●Boss diameter: 35 ●Tooth tip circle diameter: 50 ●Tooth width: 50 ●Lead angle: 7°46′ ●Boss length (right): 20 ●Boss length (left): 4 ●Gear precision: KHKW001: Class 2 ●Tooth form: Straight teeth ●Pressure angle: 20° ●Heat treatment: High-frequency hardening of tooth surface ●Tooth surface hardness: 50-60HRC ●Surface treatment: Blackening except for ground parts ●Tooth surface finish: Grinding ●Gear cutting reference surface: Hole (H7) ●Can additional processing be done: Yes Material/Finish: ●S45C Note: ●Sold as a single piece, not a set.
