KHK CP Stainless Steel Spur Gear SUSP5-30 SUSCP5-30 1 pc

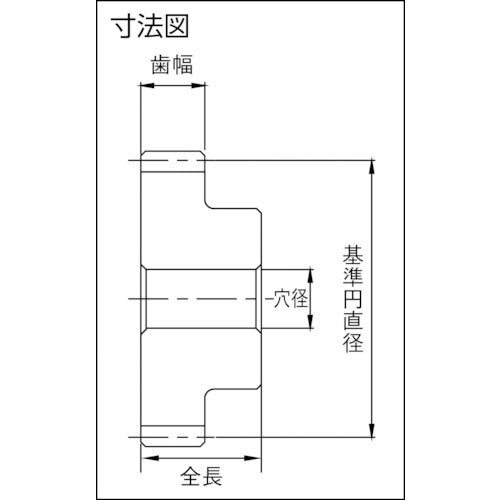

Catalog number: SUSCP5-30 Features: ● Made of SUS303 material, ideal for food machinery where rust is unacceptable. Applications: ● Power transmission gears. Specifications: ●Module: CP5 (1.5915) ●Number of teeth: 30 ●Shape: S1 ●Pitch circle diameter (mm): φ47.74 ●Tooth width (mm): 15 ●Hole diameter (mm): φ10 ●Total length (mm): 30 ●Boss diameter (mm): φ38 ●Tooth tip circle diameter (mm): φ50.93 ●Boss length (mm): 15 ●Gear precision: JIS B1702-1N8 grade ●Tooth form: Straight teeth ●Pressure angle: 20° ●Heat treatment: None ●Tooth surface hardness: (187HB or less) ●Surface treatment: None ●Tooth surface finish: Cutting ●Gear cutting reference surface: Hole (H7) ●Twist angle: - ●Can additional processing be done: Yes Material/Finish: ●SUS303 Note: ●This is sold as a single piece and not a set.
