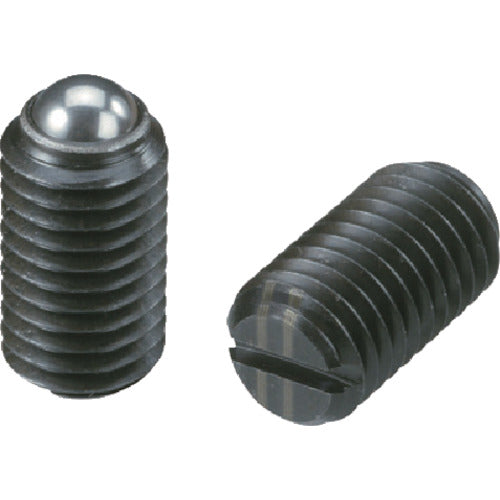

kipp ball plunger thread diameter M12 x 1.75 BSTH12 1 piece

Catalog number: BSTH12 Features: ● A spring is built into the screw body, and the ball is stroked and positioned by the pressure. Specifications: ● Load (N): 66.0-120.0 ● Stroke (mm): 2.5 ● Pole diameter (mm): 8.0 ● Screw diameter: M12 x 1.75 ● Body dimensions (mm) length: 22 Material/Finish: ● Body: SUM22L Black dyed ● Coil spring: SWPA ● Ball: SUJ2 HRC56-60 Note: ● Shipping fee to Hokkaido and Okinawa is 1,500 yen
