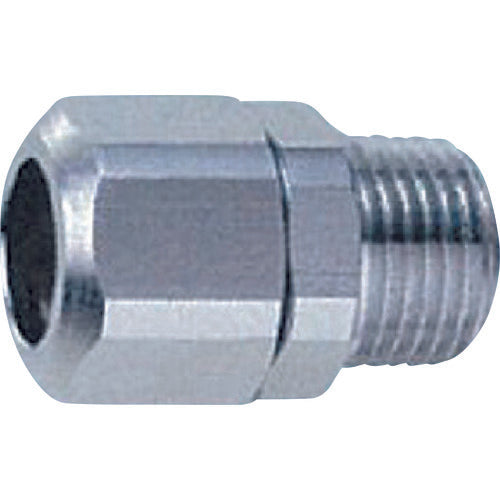

KISS Easy Joint Metal Fitting Male SKO-13168 1 pc

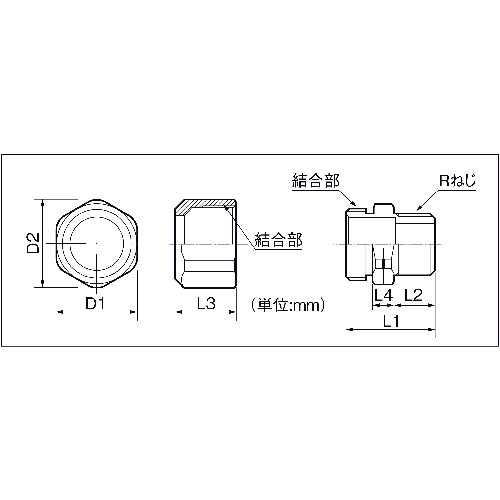

Catalog number: SKO-13168 Features: ● No need for a flange tool. ● Prevents electrolytic corrosion. ● Safe with a "three-point seal structure." Applications: ● For easy flex Specifications: ● Thread size: R1/2 ● Total length (mm): 41.2 ● Hexagonal face size (mm): 26 ● Thread: R1/2 ● Flex diameter: For Φ16.8 ● L1 (mm): 30.5 ● L2 (mm): 14 ● L3 (mm): 20 ● L4 (mm): 7.2 ● C3604BD ● Operating temperature range (℃): 100 ● D1 (mm): 26 ● D2 (mm): 28 ● Easy flex fittings, male Caution: ● Do not connect to flexible pipes of other companies.
