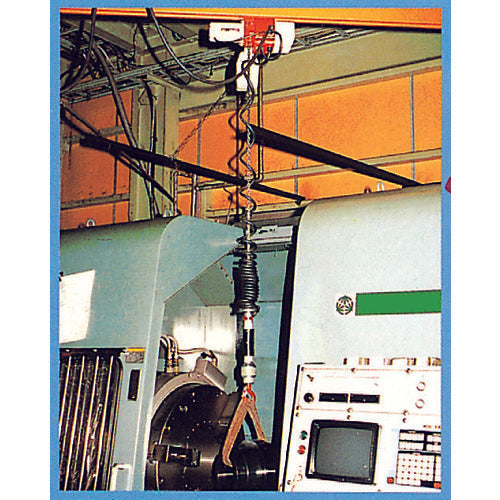

Catalog number: EDC10SD Features: ● Small capacity type that combines power and speed. ● Equipped with mechanical brake. ● Equipped with upper limit switch and overwinding prevention device. ● Lifts and lowers at two speeds, high and low, by operating the cylinder switch. (High and low speeds are selected with a changeover switch) ● Uses a strong load chain (hardened alloy steel chain with special rust prevention treatment). Applications: ● Equipped with a slow speed function, it is effective for precision work such as mold matching and assembly. ● Work efficiency is improved by one-touch replacement of hooks and dedicated lifting tools. Specifications: ● Rated load (t): 0.10 ● Standard lifting height (m): 1.8 ● Winding speed (m/min) low speed: 1.5 ● Winding speed (m/min) high speed: 15.0 ● Minimum distance between hooks (mm): 945 ● Time rating (min): 15 ● Power supply (V): Single phase 100V ● Power cord length (m): 5m (with 3P plug) ● Power supply: Single phase 100V ● Motor output (kW): 0.3 ● Power cord: 5m (with 3P plug) ● 2-speed cylinder type Material/Finish: ● Load chain: Nickel-plated chain
