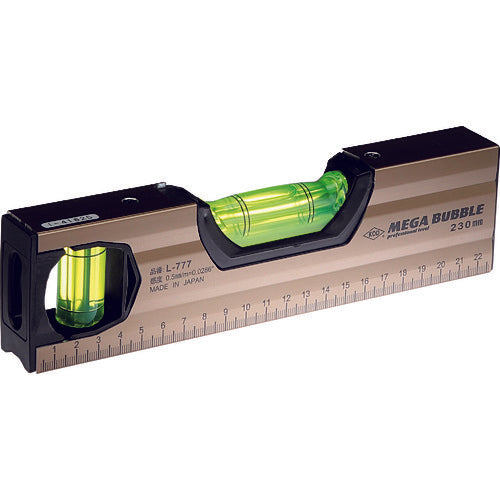

KOD Mega Bubble L-777 230MM 1 piece

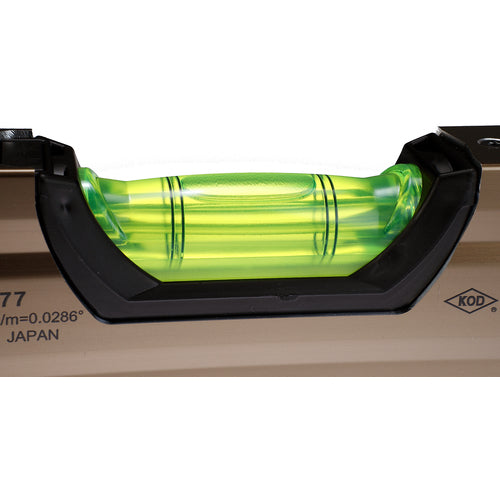

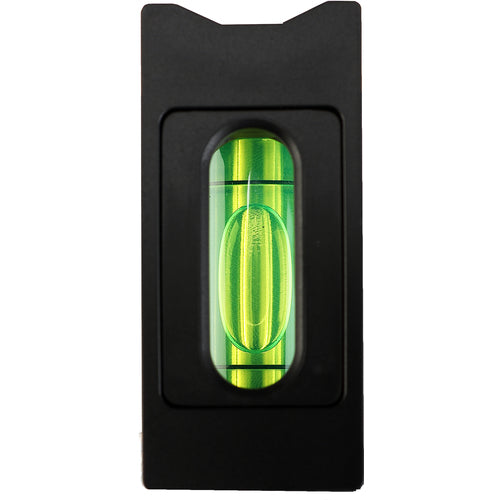

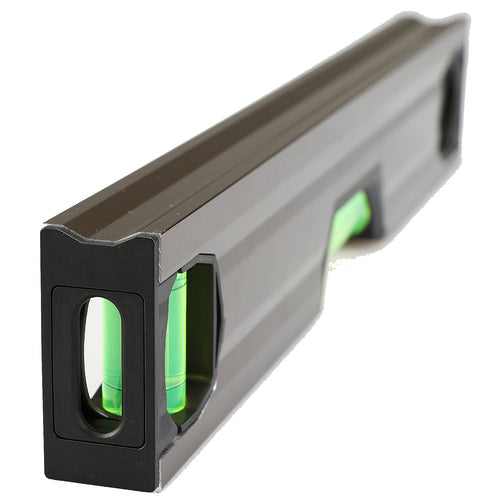

Catalog number: L-777 230MM Features: ●Super large bubble tube for excellent visibility. ●Equipped with precision correction mechanism for peace of mind. Applications: ●For measuring horizontal, vertical and 45° angles. Specifications: ●Color: Bronze ●Length (mm): 230 ●Height (mm): 60 ●Thickness (mm): 28 ●Magnet: None ●Body color: Bronze ●Vibration tube color: Yellow-green ●Accuracy: Within ±1.5mm/m = ±0.0859° ●Sensitivity: 0.5mm/m = 0.0286° ●Vibration tube type: Kamaboko type (horizontal) Tube type (vertical) ●Measurement surface groove: V groove ●Side protector: End cover ●Luminous sheet: Included (horizontal vial) ●Surface treatment: Anodized ●Equipped with extra-large vial (230mm does not have a 45° vial) ●Scale graduations included ●End window for vertical measurement ●4 graduations included Materials/Finish: ●Body: Aluminum ●Vibration tube: Acrylic resin
