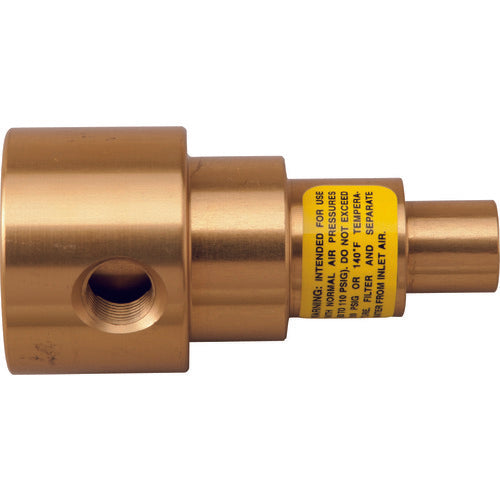

KOGI Air Amplifier Nozzle Transvector Jet 901DA 901DA 1 piece

Catalog number: 901DA Features: ● Attracts and sucks in the surrounding air, allowing for a large volume of air to be blown. ● Can blow 2 to 20 times the volume of air depending on the model. ● Good for blowing over a wide area due to the wide-angle nozzle. ● Capacity can be adjusted by increasing or decreasing the number of built-in gaskets. Uses: ●Blow: chips, cleaning, draining ●Suction: chip collection, hole cleaning, exhaust, smoke extraction ●Transport: foam material, paper waste, food materials, medicines, powder ●Draining: various rod shapes (passes through the inner diameter) ●Suction: robot hand ●Suction + blow: chemical spray Specifications: ●Nozzle mounting port: NPT-1/8 ●Nozzle length (mm): 66.5 ●Nozzle aperture (mm): 12.7 ●Total length (mm): 66.5 ●Air pressure used (MPa): 0.29 to 0.69 ●Air consumption (NL/min): 290 to 587 ●Outer diameter (mm): Maximum Φ33.8 ●Minimum aperture (mm): φ10 ●Maximum operating pressure (MPa): 1 ●Applicable fluid: compressed air (compressor air) ●Minimum aperture 10mm Material/Finish: ●Aluminum Caution: ●Use clean compressed air.
