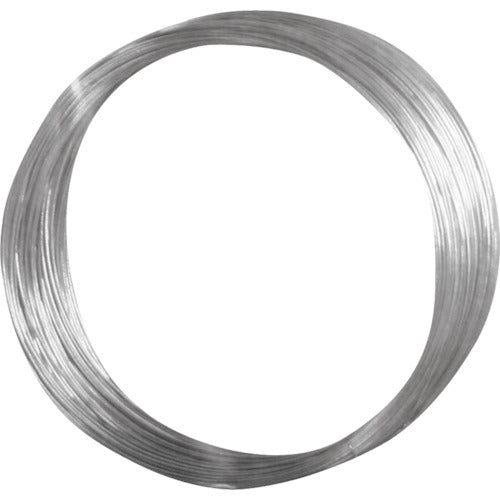

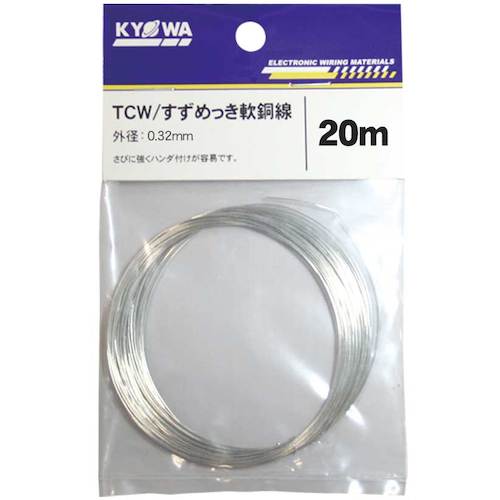

KYOWA Tin Plated Soft Copper Wire TCW 0.32MM 20M 1 Piece

Catalogue number: TCW 0.32MM 20M Features: ● The surface of the electrical soft copper wire is protected with tin plating to prevent oxidation and rusting. ● Good solderability. ● Resistant to oxidation, providing stable characteristics against aging. Applications: ● Wiring for circuit boards. ● Various lead wires such as jumper wires. Specifications: ● Length (m): 20 ● Conductor outer diameter (Φmm): 0.32 ● Thickness tolerance (mm): ±0.01 ● Elongation rate (%): 15.0 or more ● Nominal conductor cross-sectional area (［［MM2］］): 0.08042 ● Conductor resistance (Ω/km) (20℃): 228.1 ● Electrical conductivity: 94.0% or more Material/Finish: ● Electrical soft copper wire (tin plated)
