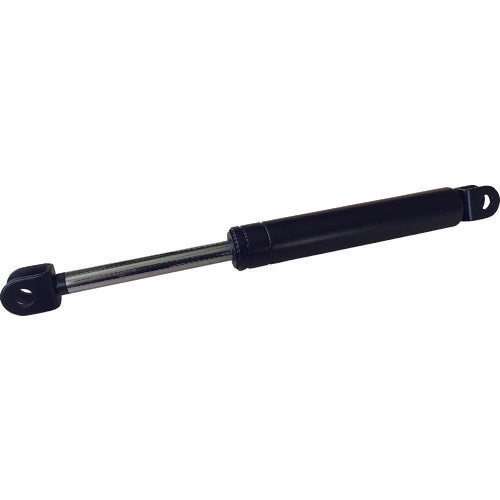

KYB Gas Spring KHG130-30 Total length 385mm Length 255mm Maximum extension force 294N Maximum contraction force 374N KHG130-30 1 piece

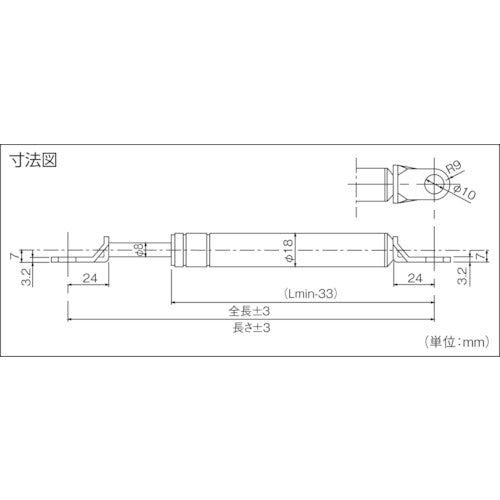

Catalog number: KHG130-30 Features: ●Since the spring constant is lower than that of a coil spring, it can generate a nearly constant spring force over a long compression stroke, making it ideal for opening and closing doors. ●It has a damping effect as well as a spring action, allowing you to reliably control the opening and closing speed of doors. Applications: ●Opening and closing various lids such as copy machine lids, vending machine lids, and roof box lids, assisting in raising and lowering hanging shelves, etc. Specifications: ●Total length (mm): 385 ●Length (mm): 255 ●Stroke (mm): 130 ●Rebound force at full extension (N): 294 ●Rebound force at full contraction (N): 374 ●Rod diameter: Φ8mm ●Cylinder outer diameter: Φ18mm ●Usage temperature range: -20 to 80°C ●Gas spring type: Fixed installation direction (all gas) type ●Installation direction: 60° Material/Finish: ●Steel
