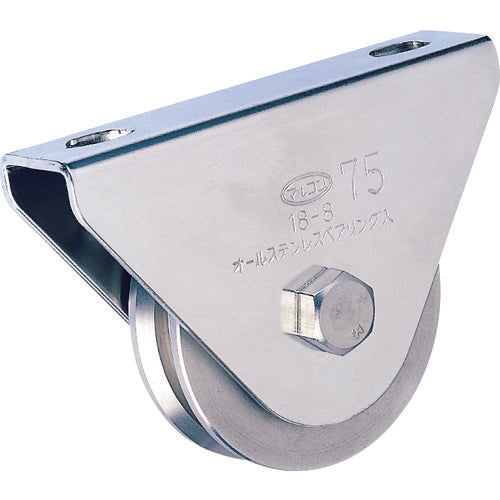

MALCON All-stainless steel heavy duty car with frame 90mm V-type S-3000-90 1 piece

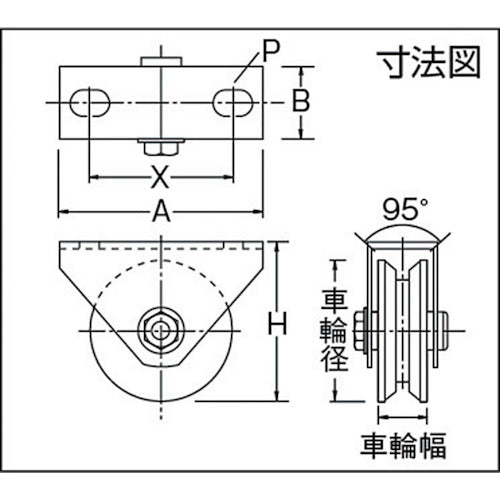

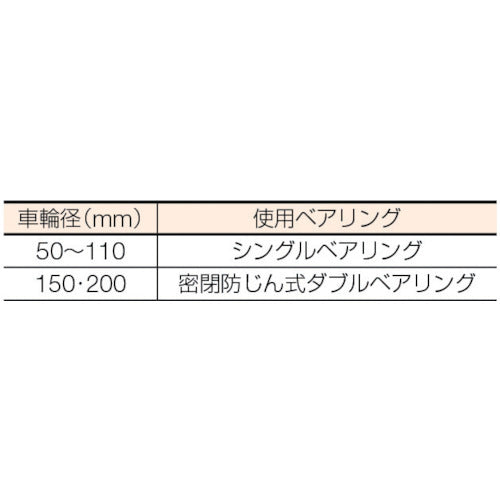

Catalog number: S-3000-90 Features: ●Uses sealed dustproof bearings (SUS440C). ●Uses rubber seals, making it excellent in water resistance. Applications: ●For angles and flat bars. Specifications: ●Allowable load (daN): 588 ●Allowable load (kgf): 600 ●Wheel diameter (mm): 90 ●Wheel width (mm): 20 ●Mounting height H (mm): 95 ●Mounting seat A (mm): 120 ●Mounting seat B (mm): 30 ●Mounting pitch X (mm): 95 ●Mounting hole diameter P (mm): 15 x 11 ●Allowable load (N): 5883 ●50-110mm: Uses single bearing ●150mm: Uses sealed dustproof double bearing Material/Finish: ●Frame: Stainless steel (SUS304) ●Wheels: Stainless steel (SUS303) Note: ●Allowable load is a reference value in the vertical direction.
