MALCON Frame Weight Vehicle 150mm U-Type C-2600-150 1 pc

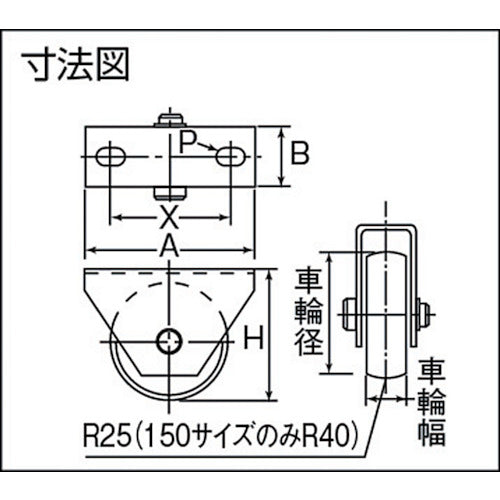

Catalog number: C-2600-150 Features: ●The wheel shape is rounded, and the contact area with the running surface is small, improving running performance. ●For floors. Applications: ●For floors. ●For sliding gates, entrances and exits of factories, schools, warehouses, etc. Specifications: ●Allowable load (daN): 980 ●Allowable load (kgf): 1000 ●Wheel diameter (mm): 150 ●Wheel width (mm): 43 ●Mounting height H (mm): 165.0 ●Mounting seat A (mm): 250 ●Mounting seat B (mm): 60 ●Mounting pitch X (mm): 185 ●Mounting hole diameter P (mm): 35 x 20 ●Allowable load (N): 9804 Material/Finish: ●Frame: Steel ●Frame surface treatment: Chromate plating finish ●Wheels: Ductile cast iron (FCD-450) Note: ●Allowable load is a reference value in the vertical direction.
